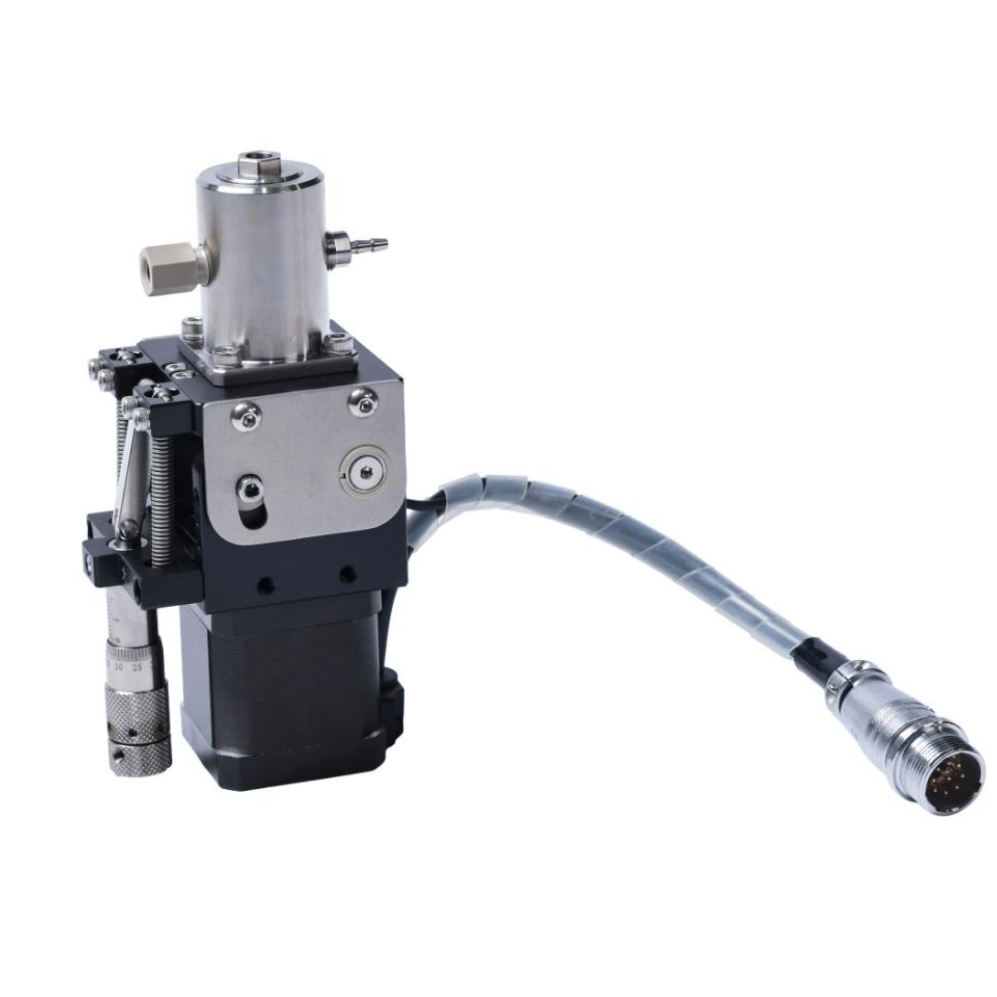

MICRAVA M-SH-Y100UL Micro Ceramic Pump is a product innovatively developed by our company based on the actual needs of customers, aiming to solve the bottleneck of customers' need for precise liquid injection in micro quantities. It has been continuously updated and upgraded by our R&D team. This micro dosing pump can completely address the difficulties faced by vapor chamber due to its extremely small injection volume, unstable injection volume, and large fluctuations.

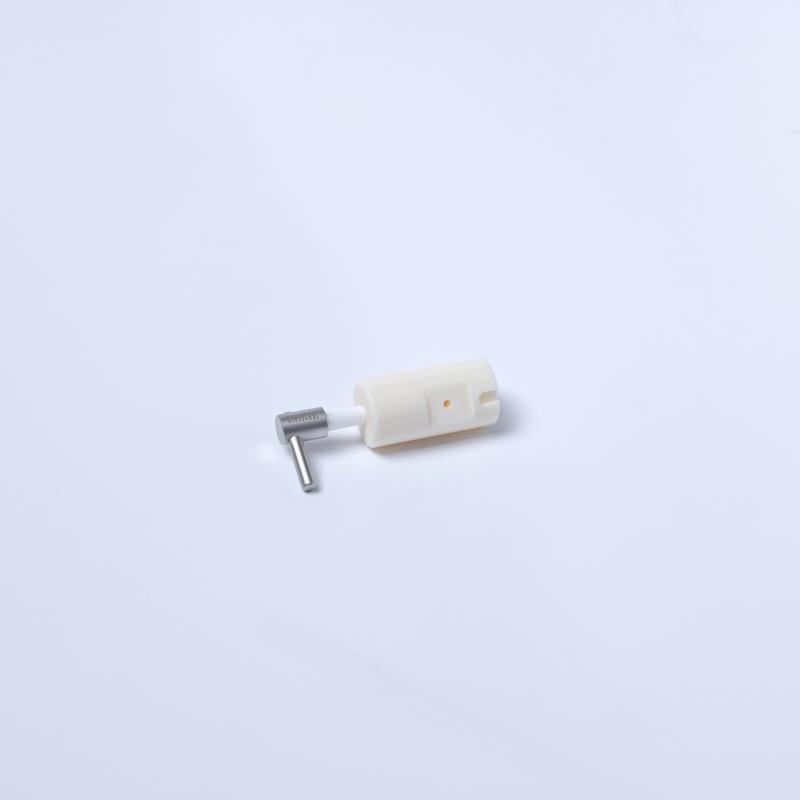

The M-SH-Y100UL operates through a precise ceramic valve structure. Under the drive of the motor, the ceramic components perform reciprocating motion, thereby constantly changing the volume of the chamber and achieving the intake and discharge of liquid, thus completing the precise transportation of a small mount of liquid.
The greatest advantage of the M-SH-Y100UL precision pump is its applicability for milligram-level measurement, with a single injection volume ranging from 5ul to 100ul, and an accuracy of up to 0.1%.

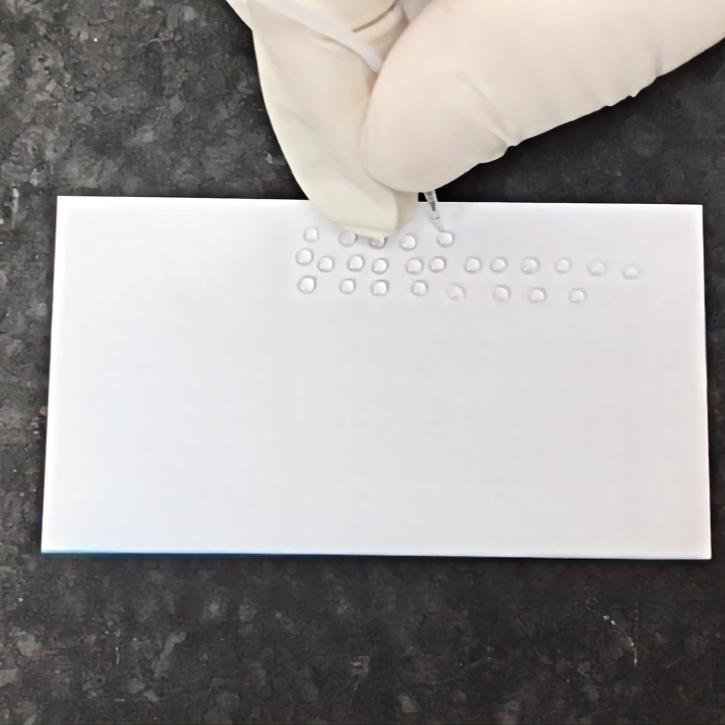

The valve body is made of all-ceramic material, featuring corrosion resistance, wear resistance, and high measurement accuracy. As shown in the picture, this is the point measurement of 2 milligrams by our M-SH-Y100UL ceramic metering pump in the environment of corrosive conditions.
MICRAVA is specifically designed to provide solutions for fluid micro-metric measurement, high-precision requirements, and corrosive environments. Welcome to contact us for inquiries.
