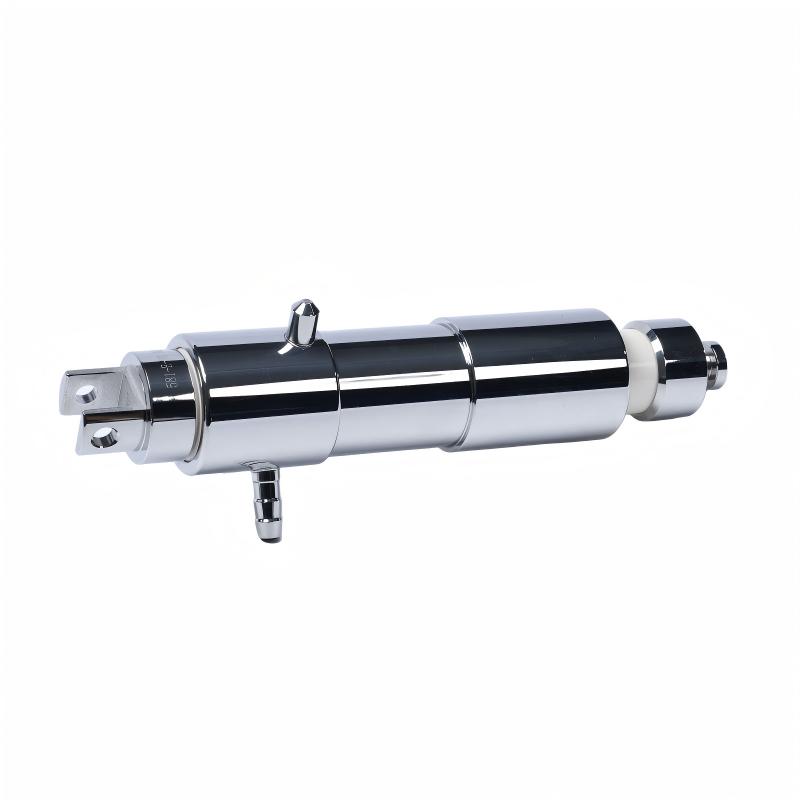

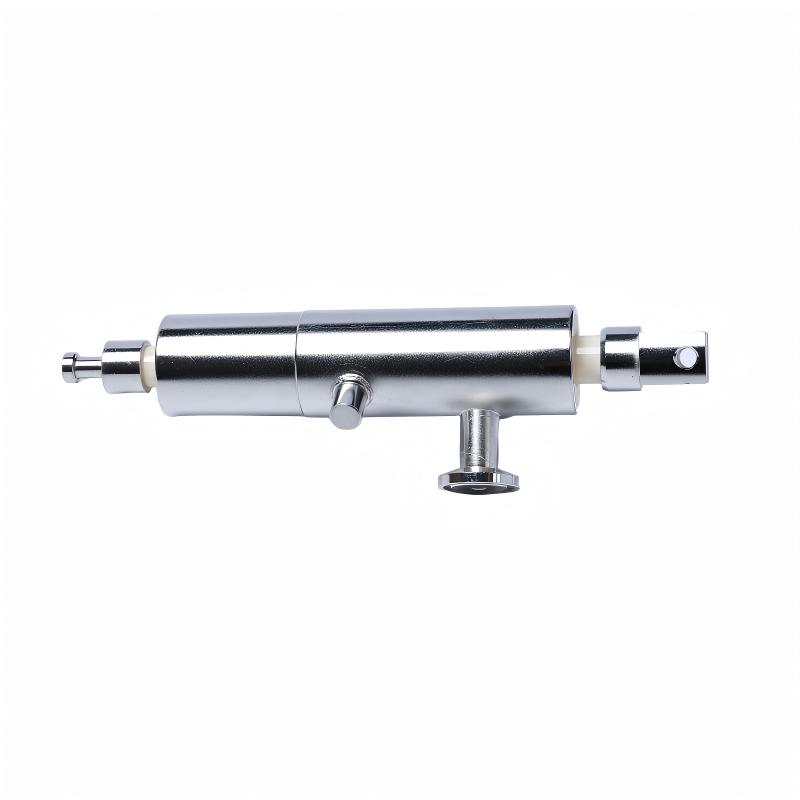

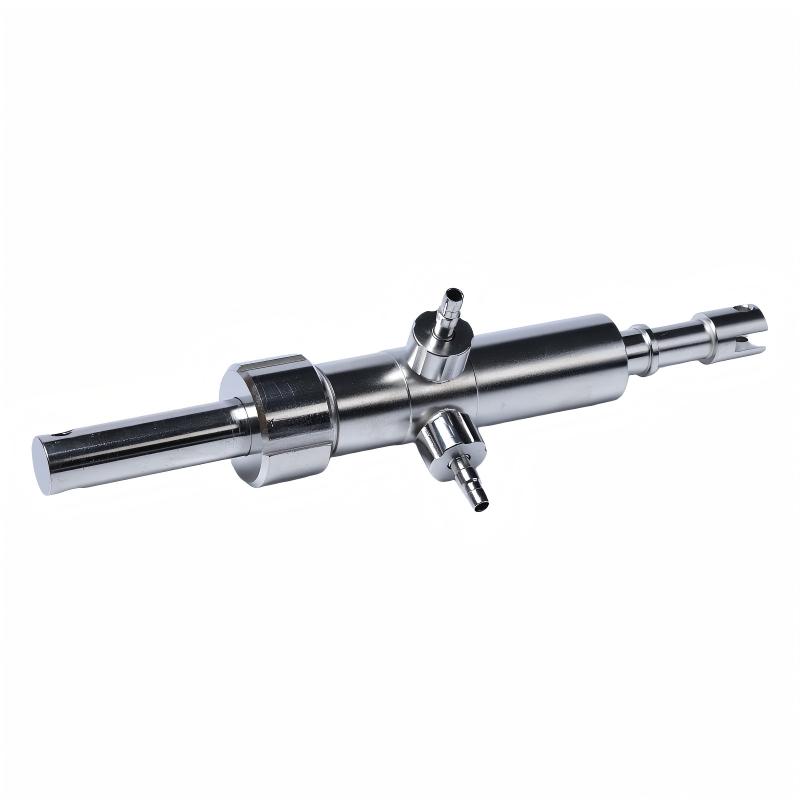

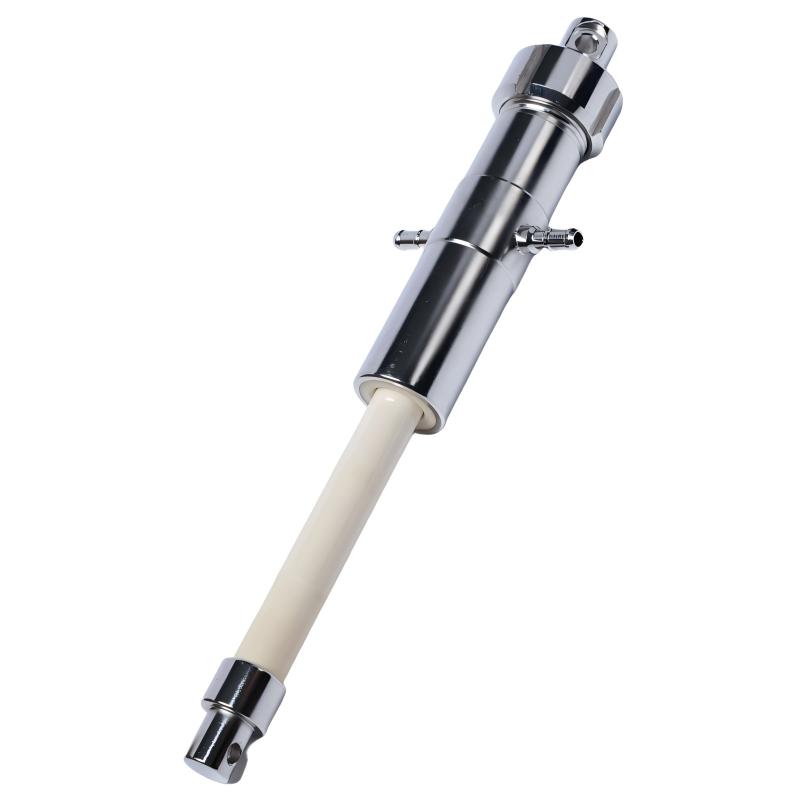

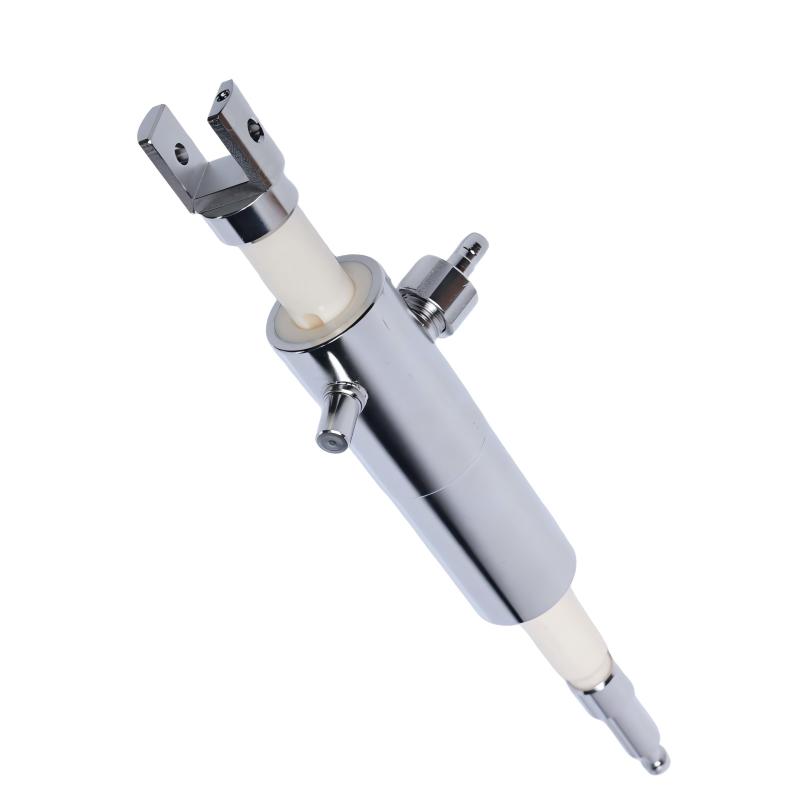

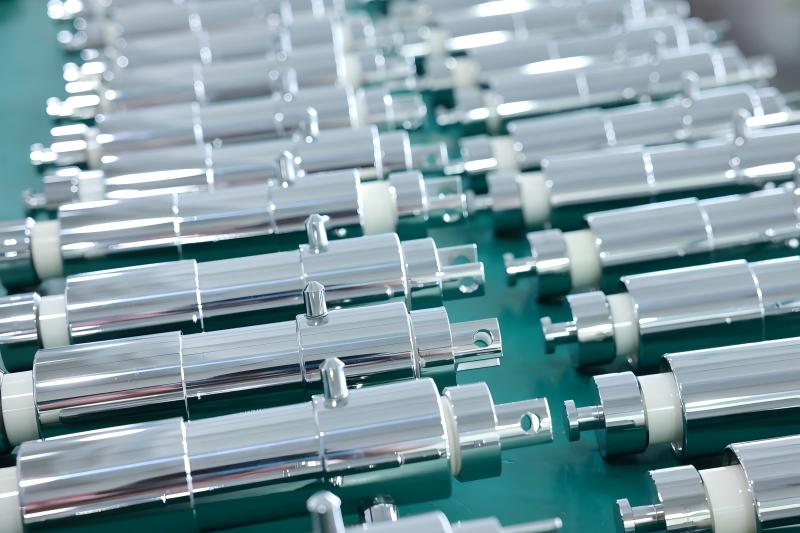

High Accuracy Liquid Filling System Pump
Product Description
The ceramic filling pump is widely used in automated liquid filling machines where accuracy and consistency are essential. It ensures stable output for production environments requiring precise volume control.Wide application: Suitable for precise filling of corrosive liquids such as oral liquids, biopharmaceuticals, and chemical reagents.
Applications
The ceramic filling pump is ideal for precision liquid filling systems, including pharmaceutical liquid filling, chemical reagent dispensing, and automated production line applications requiring stable and accurate dosing performance.
Adavantages
1. Customizable according to customer requirements with drawings or samples.
2. Resistant to chemical reactions, widely used for transporting most chemical media.
3. Small plunger gap, capable of continuous operation without liquid, high filling accuracy, and supports online cleaning and sterilization.
4. High-performance ceramic components engineered for global OEM applications with consistent quality and compatibility.
Product Specifications
| Specification & Model | M-CFP |
| Plunger Material | Alumina / Zirconia / Silicon Nitride / Sapphire (Optional) |
| Plunger Sleeve Material | SUS316L Stainless steel SUS316L |
| Maximum Adaptation Temperature | Max1000℃ |
| Fracture Toughness | 8~10 |
| Plunger Fit Clearance | ≤0.002mm |
| Single Range | 0.5-20ml |
| Stroke Accuracy | ±0.25% |
Working Principle
One motor controls the rotation of the valve to change its direction, while the other controls the pulling of the metering piston. The filling process is completed in three steps:
1. Suction (rotation + downward movement): Rotate the valve port to align with the liquid inlet, then lower the plunger to create a negative pressure and suck in the liquid.
2. Switching (only rotation): Rotate the valve body to align the valve port with the liquid outlet and close the inlet end.
3. Discharge (only upward movement): Raise the plunger to precisely discharge the liquid from the outlet.

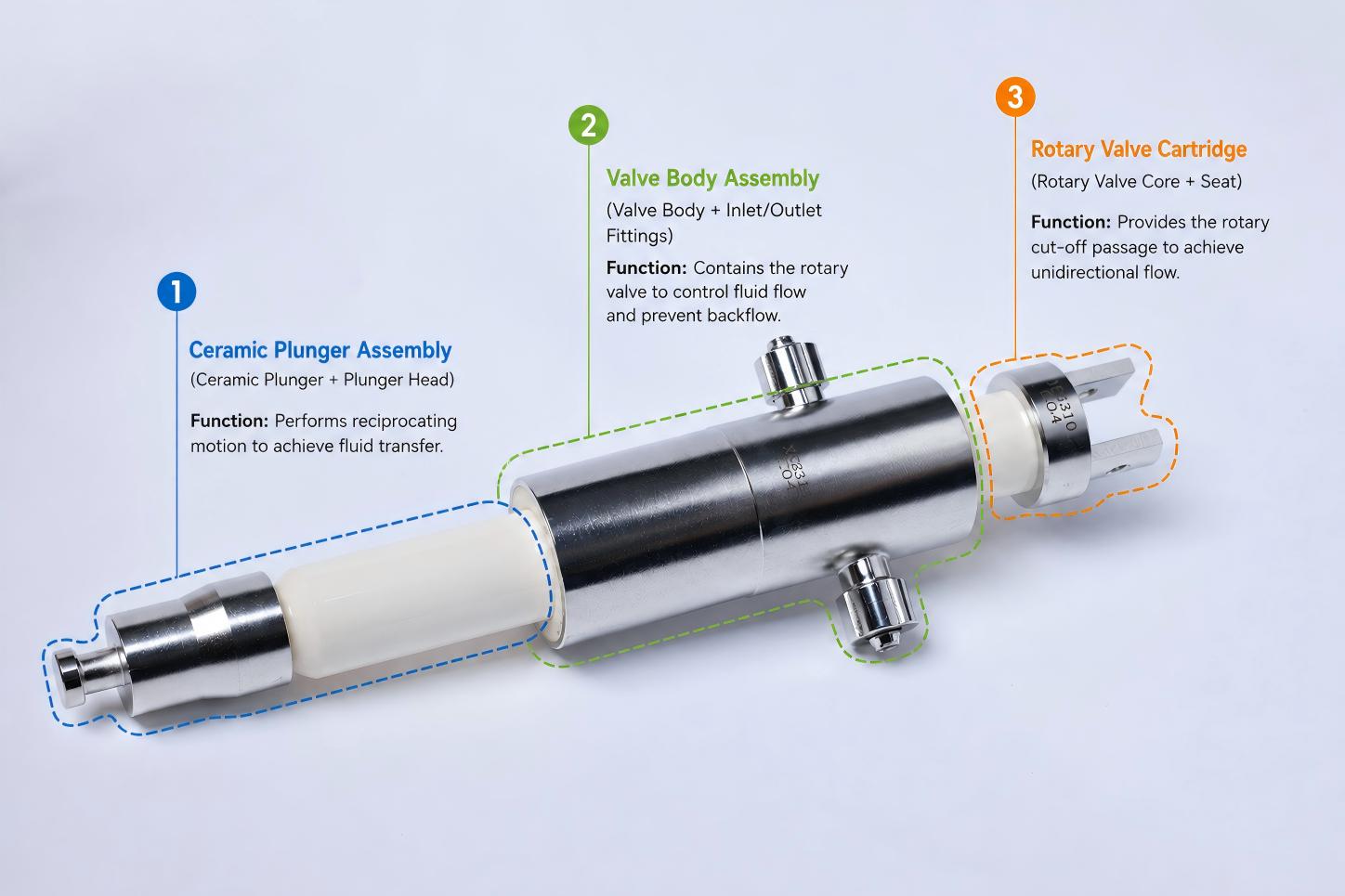

Structure Diagram
The rotary valve ceramic pump is mainly composed of three core components, each responsible for a specific function in the fluid transfer process:
1. Ceramic Plunger Assembly
The ceramic plunger assembly consists of the ceramic plunger and plunger head. It performs the reciprocating motion required to draw in and dispense fluid with high precision. The ceramic material provides excellent wear resistance, corrosion resistance, and long service life.
2. Valve Body Assembly
The valve body assembly includes the main pump body and inlet/outlet connections. It serves as the central structure of the pump, housing the internal flow channels and supporting the rotary valve mechanism. This assembly ensures stable fluid control and reliable sealing performance.
3. Rotary Valve Cartridge
The rotary valve cartridge is composed of the rotary valve core and valve seat. It controls the switching of fluid passages during operation, enabling accurate suction and discharge cycles. The rotary valve design helps achieve precise, continuous, and unidirectional fluid transfer.
