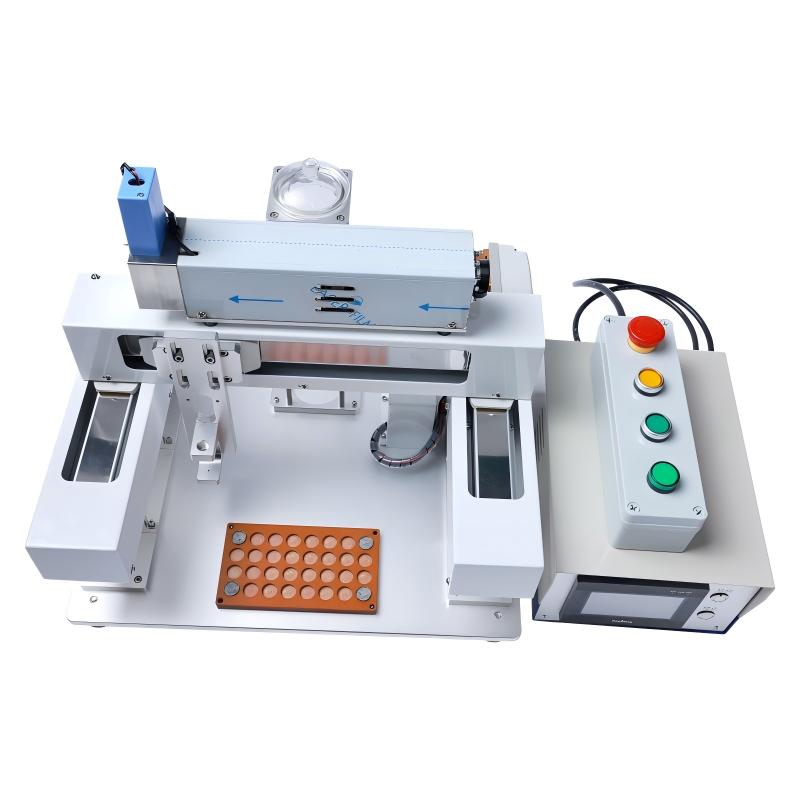

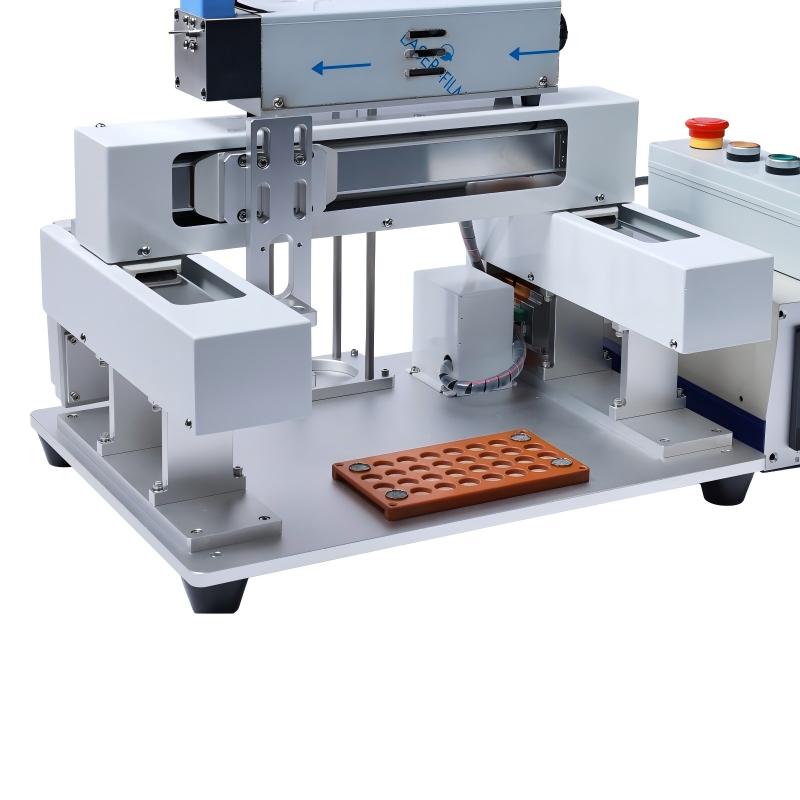

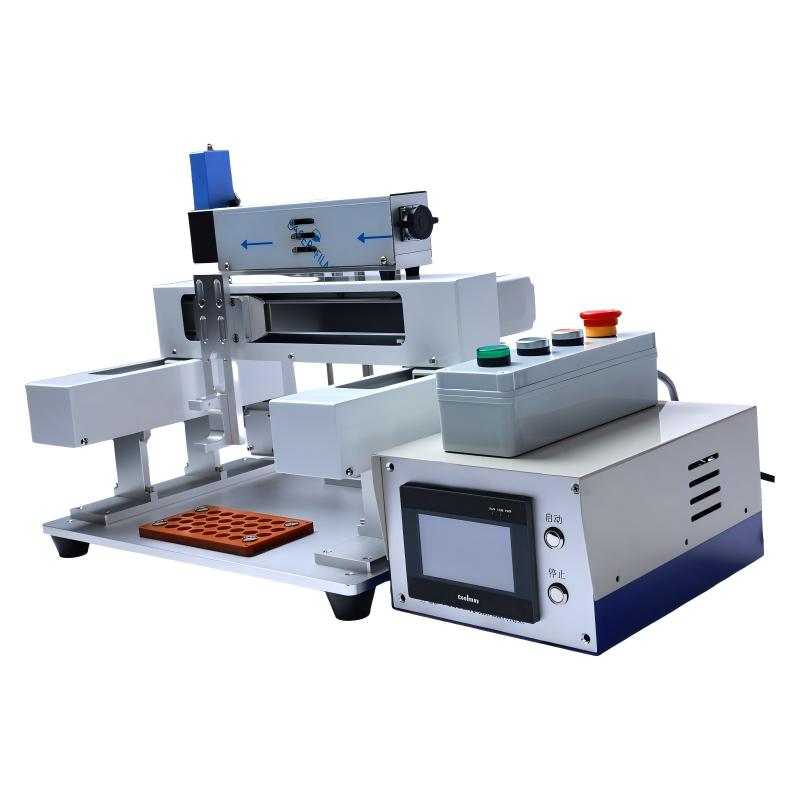

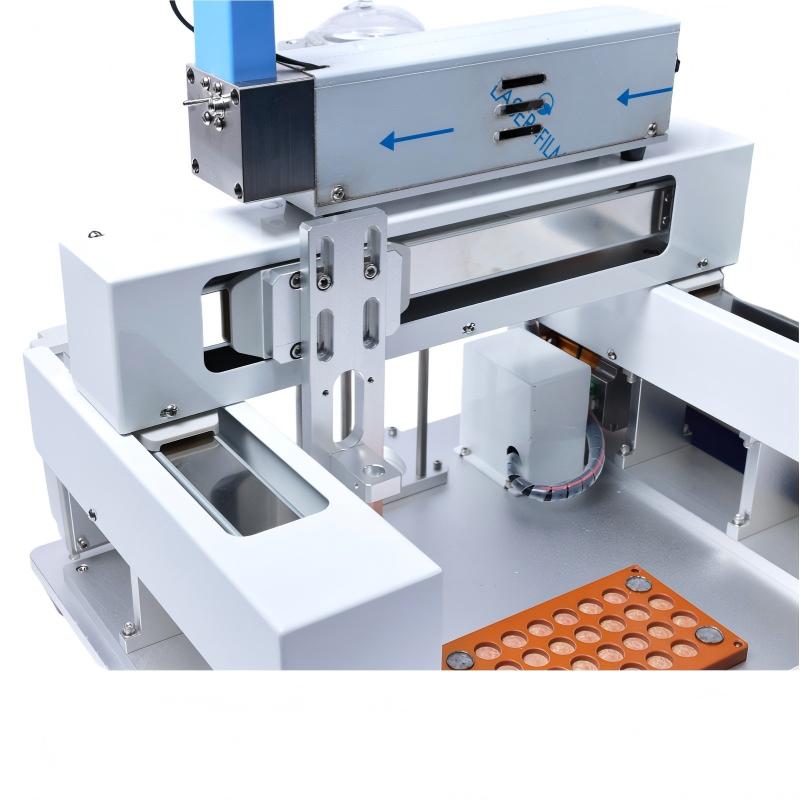

Automated Reagent Dispensing System with Precision Ceramic Pump and XYZ Gantry Platform
Description
The Automated Reagent Dispensing System is made of a high precision ceramic metering pump with an intelligent XYZ gantry motion platform to deliver accurate, repeatable liquid dispensing. It's used for lab, diagnostic, pharmaceutical, cosmetic, and industrial use.
Designed for automated reagent filling, micro volume dispensing( ul level) and batch processing, the system uses programmable motion control and precision ceramic pump technology to achieve high accuracy with minimal maintenance.
Suitable for diagnostic reagents, AF anti-contamination liquids, e-liquids, COD reagents, fragrances, essential oils, cosmetics, biological solutions, and a wide range of specialty chemicals.
Product Features
1. Precision Ceramic Metering Pump
Equipped with Micrava's high precision ceramic piston pump M-SHI-3500ul technology, ensuring excellent repeatability and stable dispensing performance.
2. Intelligent XYZ Motion Platform
The gantry system supports programmable X, Y, and Z-axis movements for automatic dispensing into trays, microplates, bottles, centrifuge tubes, and custom containers.
3. Touchscreen Control System
User-friendly touchscreen interface allows operators to set dispensing volume, speed, position coordinates, and production parameters.
4. Recipe Memory Function
Multiple dispensing programs can be stored and recalled for fast product changeovers.
5. Chemical Resistance
Ceramic fluid-contact components provide outstanding compatibility with corrosive and sensitive liquids.
6. Low Maintenance Design
No dynamic seals or easily worn components, significantly reducing maintenance requirements and downtime.
Working Principle
The ceramic metering pump precisely sucks and dispenses a setted liquid volume. The integrated controller synchronizes the pump operation with the XYZ motion platform.
During operation:
1. The ceramic pump draws a precise volume of liquid.
2. The XYZ gantry moves the dispensing nozzle to the target position.
3. The pump dispenses the programmed amount of liquid.
4. The system automatically repeats the process according to the preset dispensing pattern.
This coordinated automation ensures accurate, repeatable, and efficient liquid handling across multiple containers or plate positions.

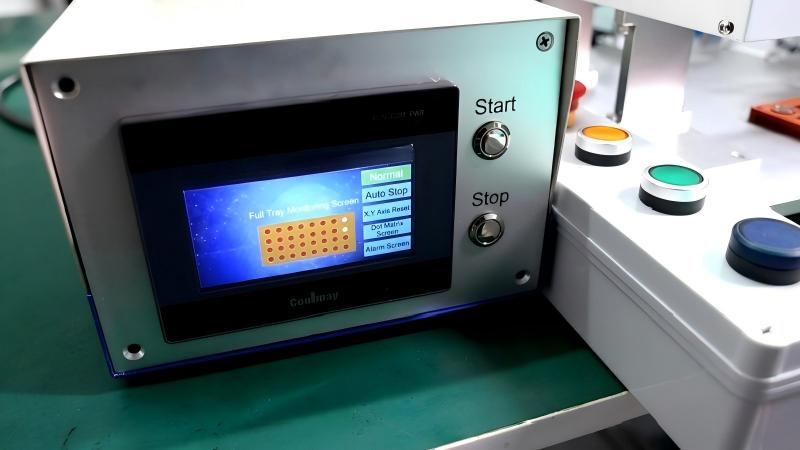

Controller Interface

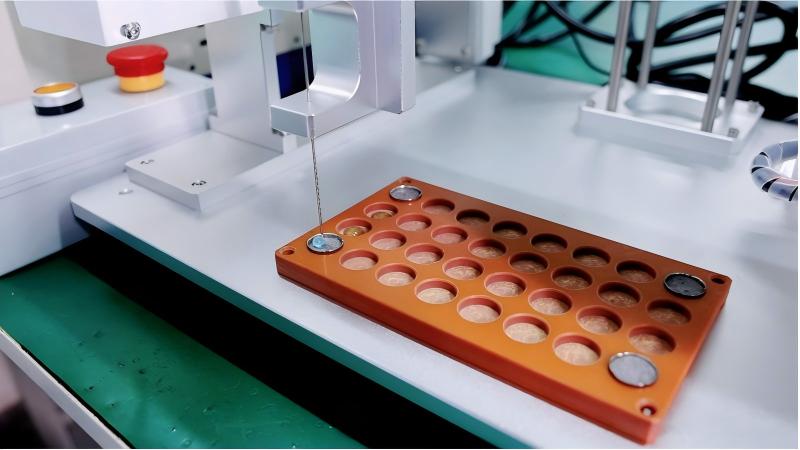

Ceramic Pump Liquid Dispensing

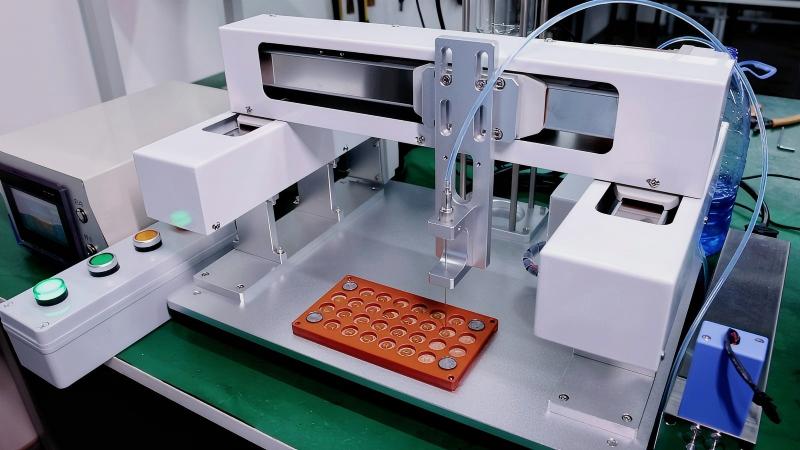

XYZ Gantry Moving
Applications
1. IVD and Diagnostic Reagent Dispensing
Accurate filling of PCR reagents, diagnostic buffers, enzyme solutions, and biological reagents.
2. Laboratory Automation
Automated dispensing into microplates, test tubes, centrifuge tubes, and sample trays.
3. Cosmetic and Beauty Products
Dispensing of serums, essence liquids, fragrances, and skincare formulations.
4. E-Liquid Manufacturing
Precise dosing of nicotine solutions, flavor concentrates, and e-liquid formulations.
5. Chemical Processing
Suitable for AF liquids, COD reagents, specialty chemicals, and laboratory formulations.
6. Pharmaceutical and Biotechnology
Liquid handling for research, development, and small-batch production processes.
Manufacturing Excellence
Micrava specializes in precision ceramic pumps for fluid control technologies. Our facility has CNC machining centers, precision grinding equipment, automated inspection systems, and strict quality control procedures.
Each ceramic pump is manufactured and tested to ensure stable dispensing accuracy, long service life, and reliable operation in demanding industrial and lab environments.
From ceramic component processing to final assembly and performance testing, we focus on providing dependable fluid dispensing solutions for customers around the world.
Ceramic Production
Ceramic Pump Production
Assembly Workshop
