Ceramic Metering Pump for Precision Fluid Dosing
PRODUCT DESCRIPTION
The ceramic metering pump is a high-precision positive displacement pump designed for accurate micro fluid dosing applications.
Its ceramic structure ensures excellent wear resistance, chemical stability, and long-term operational reliability.
It is widely used in industries requiring stable liquid control, such as pharmaceutical manufacturing, IVD reagent dispensing, and industrial automation systems.

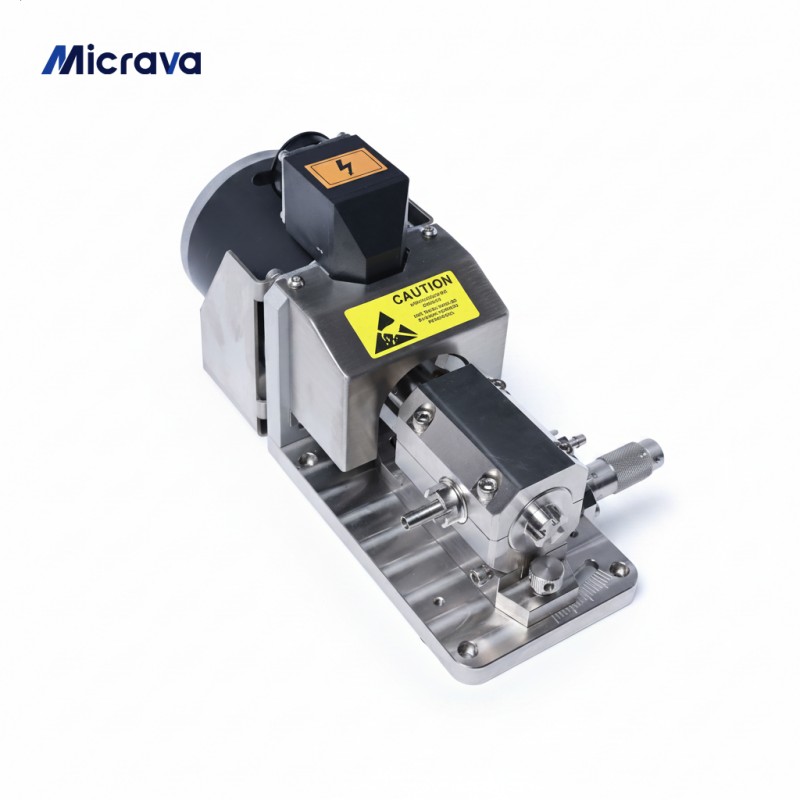

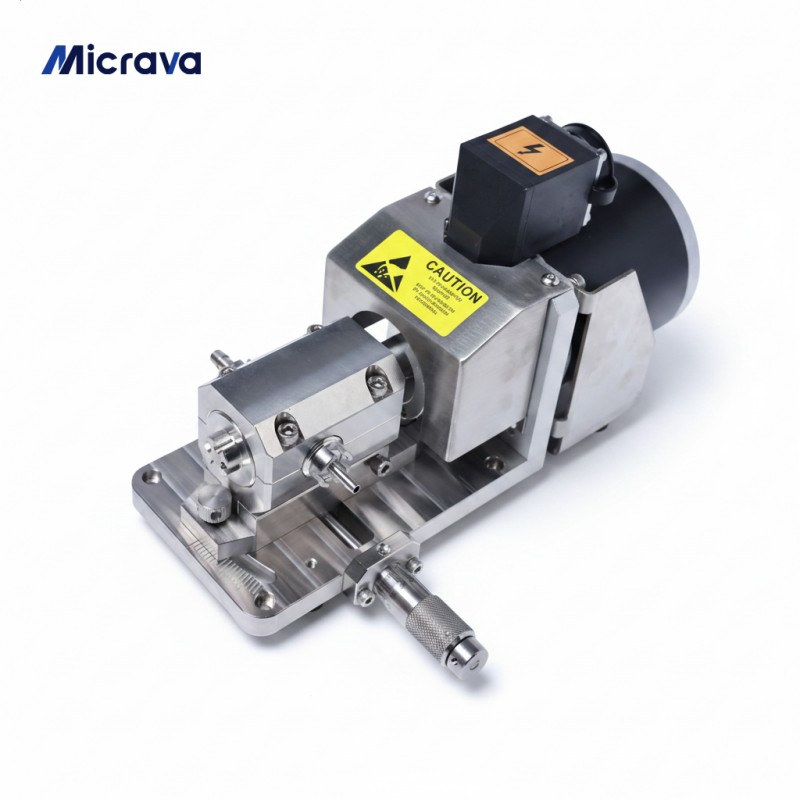

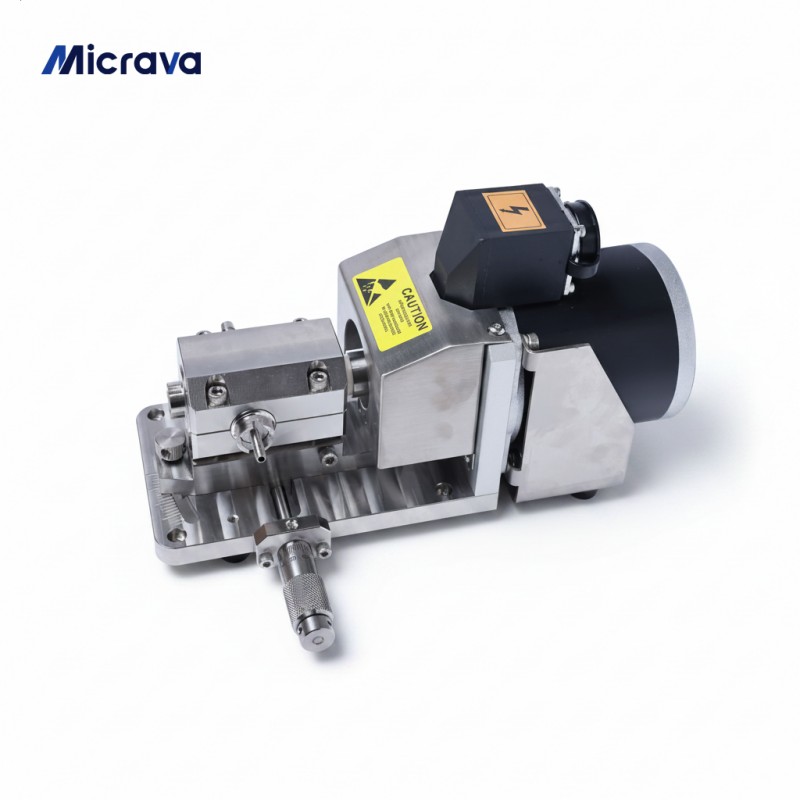

PRODUCT PICTURE
SPECIFICATIONS
| Specification& Model | M-SH-B300µl | M-SH-B1000µl | M-SH-B1500µl | M-SH-B3000µl | M-SH-B6000µl | M-SH-B10ml | M-SH-B20ml |
| Pump Valve Material | Alumina /Zirconia /Silicon Nitride (Optional) | ||||||
| Wetted Materials | Ceramic, SUS316L, PTFE (Optional) | ||||||
| Driving Mode | Type 86 Single-Axis Stepper Motor | ||||||

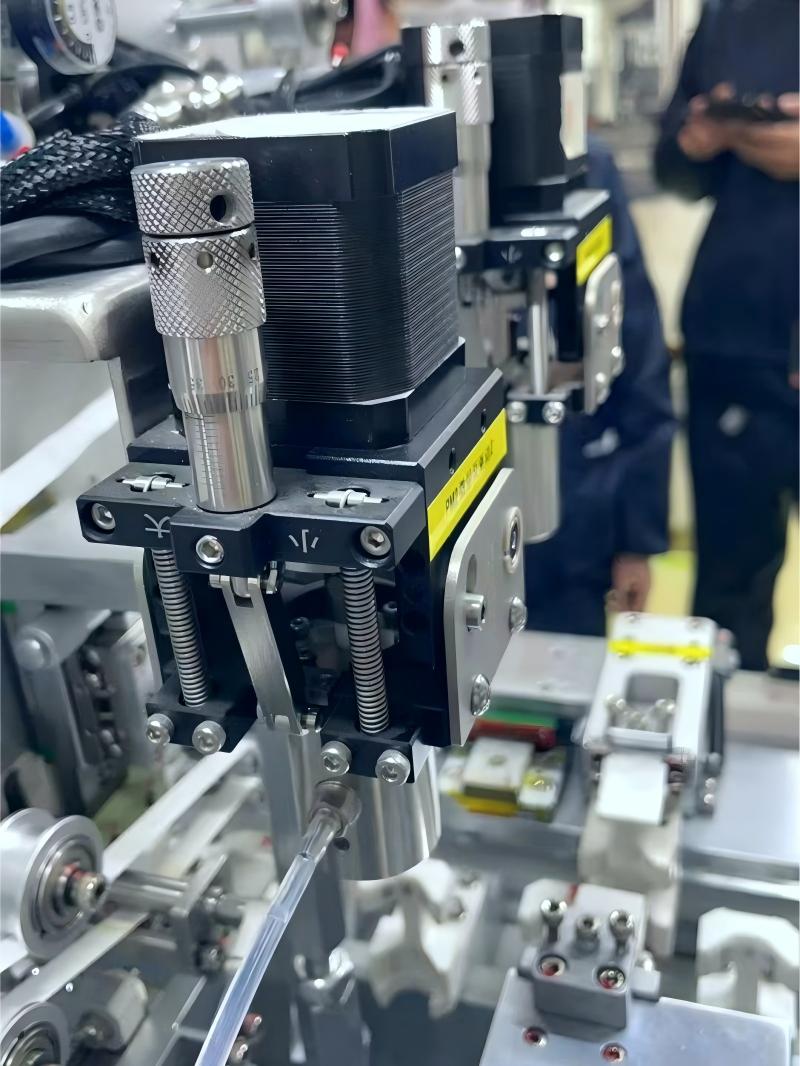

| Adjustment Method | Micrometer Adjustment | ||||||
| Single Stroke Range | 10-300µL | 20-1000µL | 30-1500µL | 50-3000µL | 50-6000µL | 0.5-10ml | 0.5-20ml |
| Stroke Accuracy | ±0.1% | ±0.2% | ±0.2% | ±0.3% | ±0.5% | ±0.5% | ±0.5% |
| Liquid Inlet Pipe | Φ4×6mm | Φ4×6mm | Φ6×8mm | Φ6×8mm | Φ6×8mm | Φ6×8mm | Φ8×10mm |
| Outlet Pipe | Φ2.5×4mm | Φ2.5×4mm | Φ4×6mm | Φ4×6mm | Φ4×6mm | Φ4×6mm | Φ6×8mm |

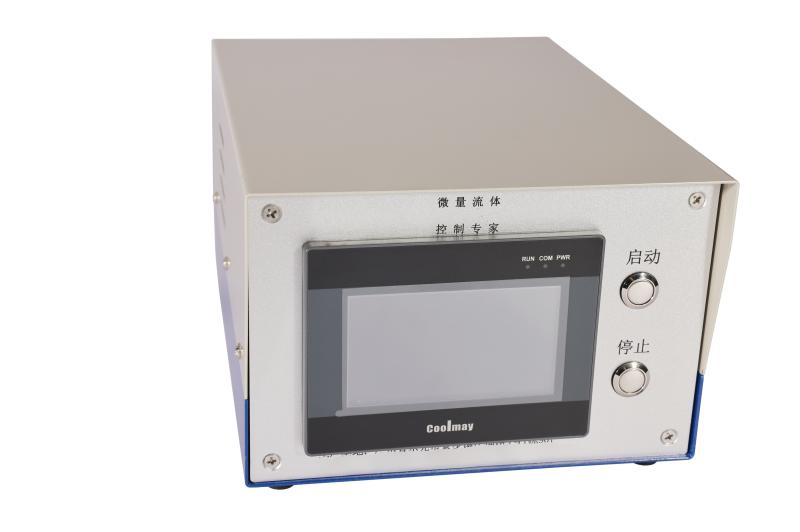

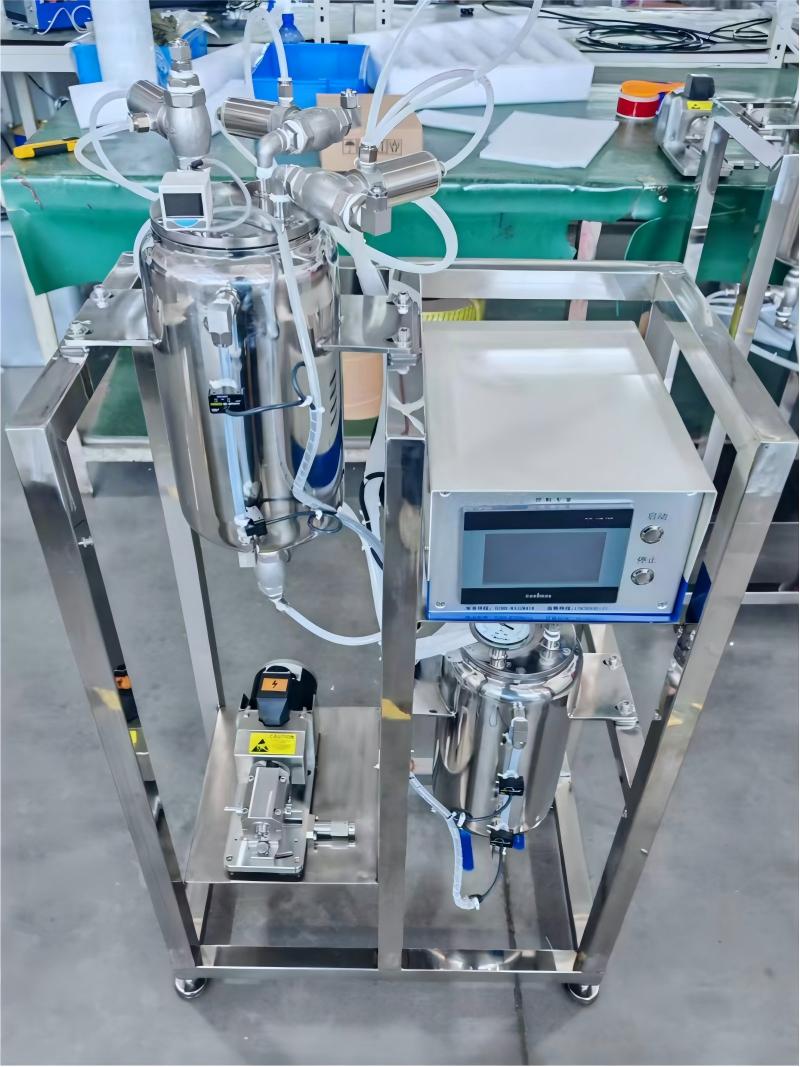

PUMP CONTROLLER
Smart Communication Function
1. Flexible operation with a user-friendly interface.
2. Standard RS485/RS232 interfaces with MODBUS protocol for communication with IPC or PC.
3. Customizable communication ports available for closed-loop control.
4. Supports OEM and ODM customization.
5. Capable of controlling multiple pumps (N pumps) simultaneously with independent parameter settings for each.
6. Enabling easy integration into automated system

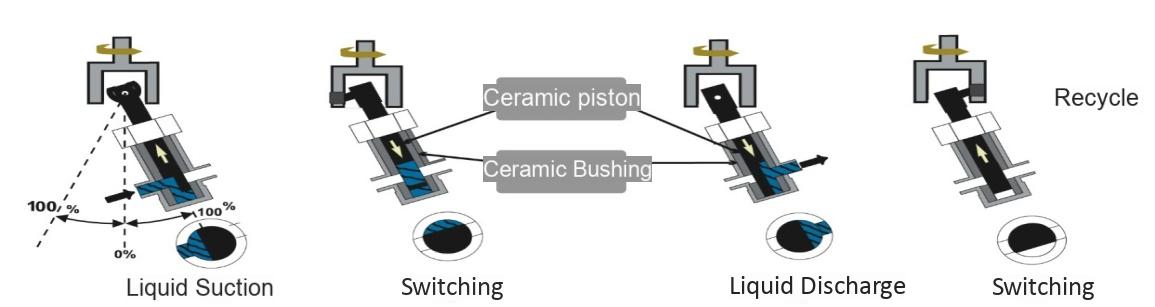

WORKING PRINCEPLE
1. The Micrava ceramic dosing pump system uses a transmission connection between a universal coupling and a stepper motor to drive the plunger rod. The plunger performs a reciprocating push–pull and rotational motion inside a ceramic chamber. By switching between the inlet and outlet ports, the system completes a cyclic valve-switching process, thereby achieving precise control of fluid intake and discharge.
2. Working principle of ceramic metering pump system:
Medium preparation → the rotating and reciprocating plunger draws liquid into the chamber → after the plunger rotates past the inlet port, the inlet is closed → the plunger continues rotating to push the liquid out of the chamber → after passing the outlet port, the outlet is closed → cycle repeats.
APPLICATIONS

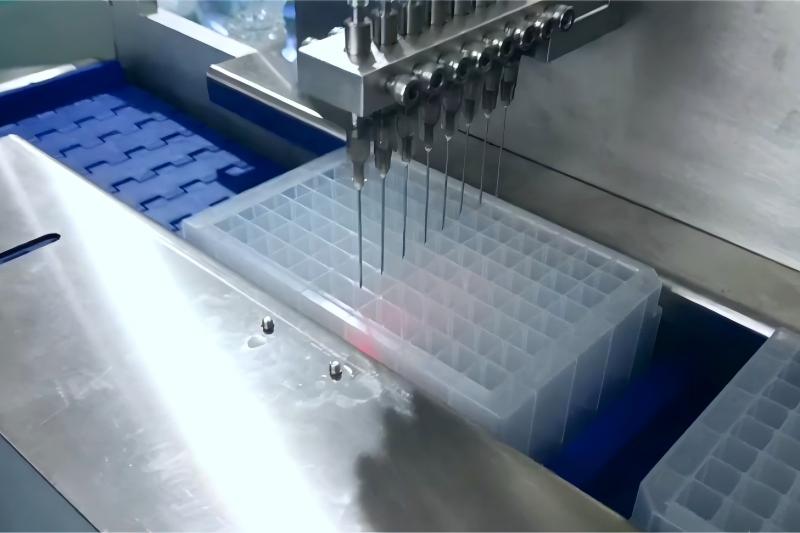

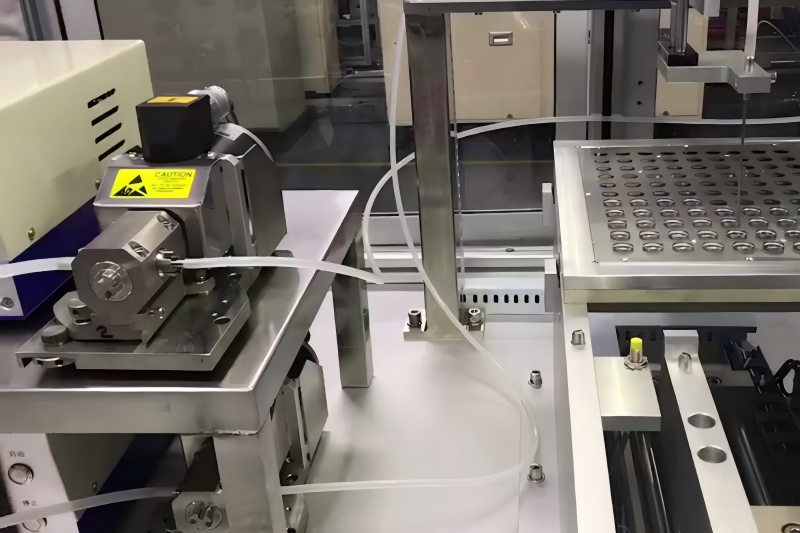

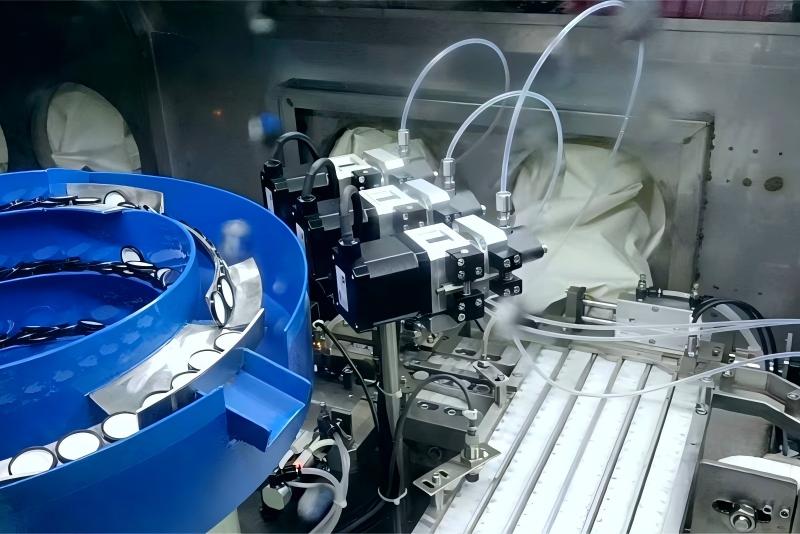

1. IVD diagnostic reagent dispensing
2. Pharmaceutical liquid dosing systems
3. Battery electrolyte filling systems

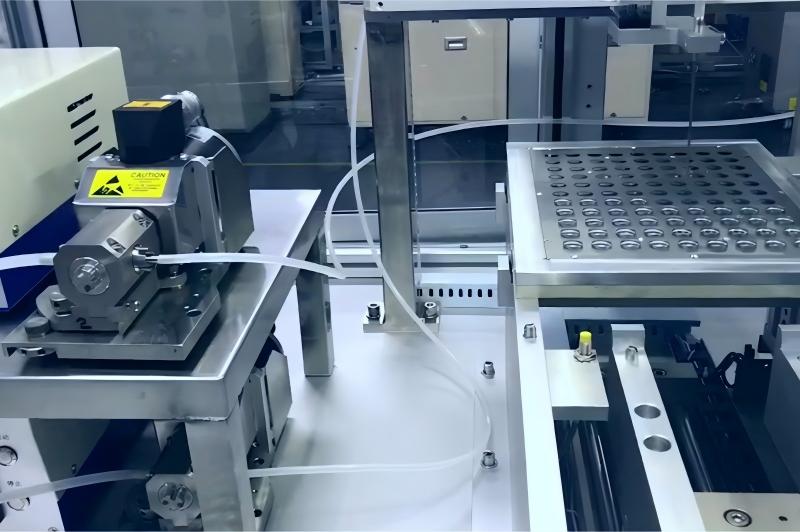

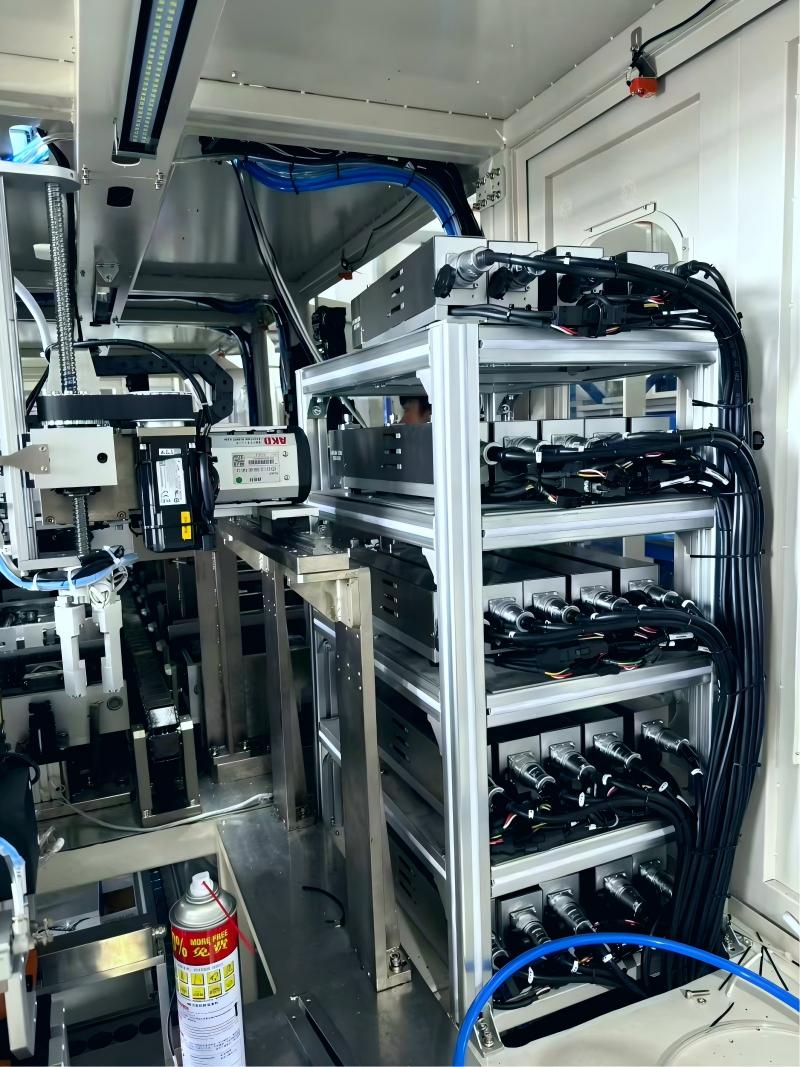

4. Laboratory automation platforms
5. Chemical micro dosing systems
INDUSTRY WE SERVED
Micrava provides high precision ceramic metering pumps, ceramic filling valves for a wide range of industries, including new energy, IVD & laboratory equipment, food & beverage, cosmetics, fine chemicals, pharmaceutical & biopharmaceutical, water treatment, and semiconductor manufacturing.

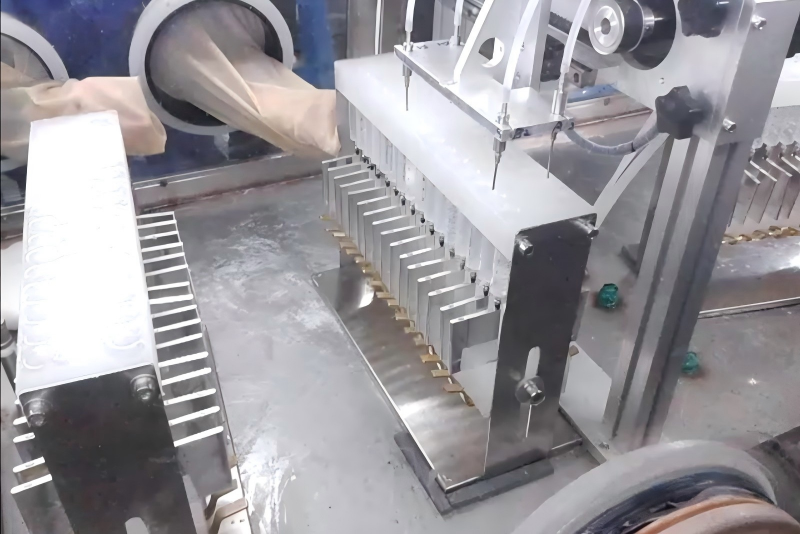

NEW ENERGY INDUSTRY
IVD&LAB

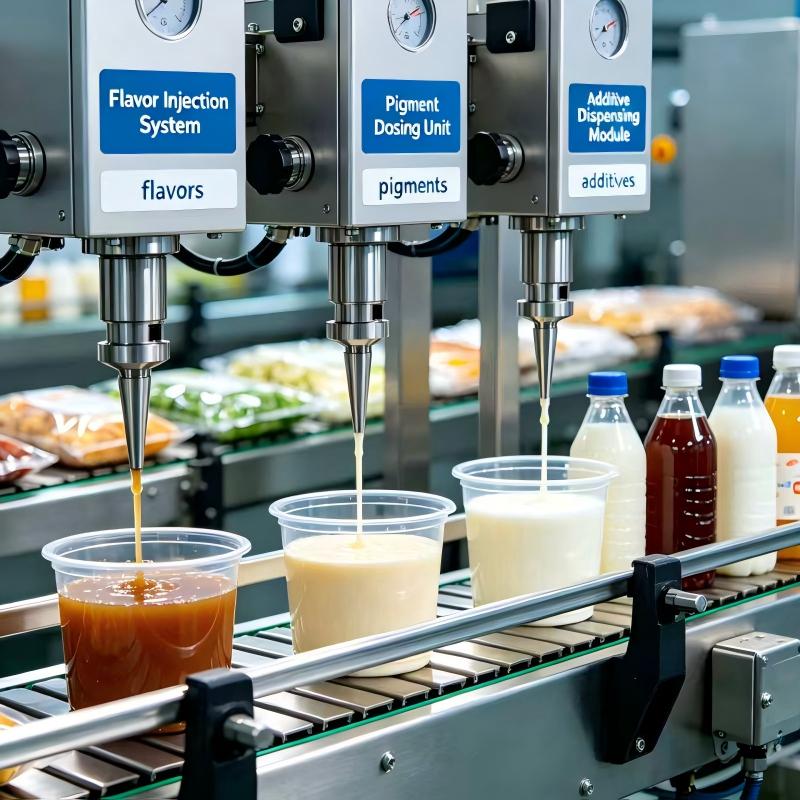

FOOD&BEVERAGE
COSMETICS
FINE CHEMICAL
PHARMA&BIOPHARMA
WATER TREATMENT
ADVANTAGES
Challenges in Chemical Dosing
1. Corrosive liquids damage traditional pumps
2. Inaccurate dosing affects production quality
3. Frequent maintenance increases downtime
4. Flow instability leads to process variation
Our Ceramic Pump Solution
1. Ceramic materials resist acids, alkalis and solvent
2. High precision dosing improves product consistency
3. Stable operation reduces maintenance frequency
4. Low pulsation ensures smooth fluid delivery
CERAMIC PUMP VS TRADITIONAL PUMP
| Feature | Ceramic Pump | Traditional Pump |
| Corrosion Resistance | Excellent | Limited |
| Accuracy | High | Medium |
| Maintenance | Low | High |

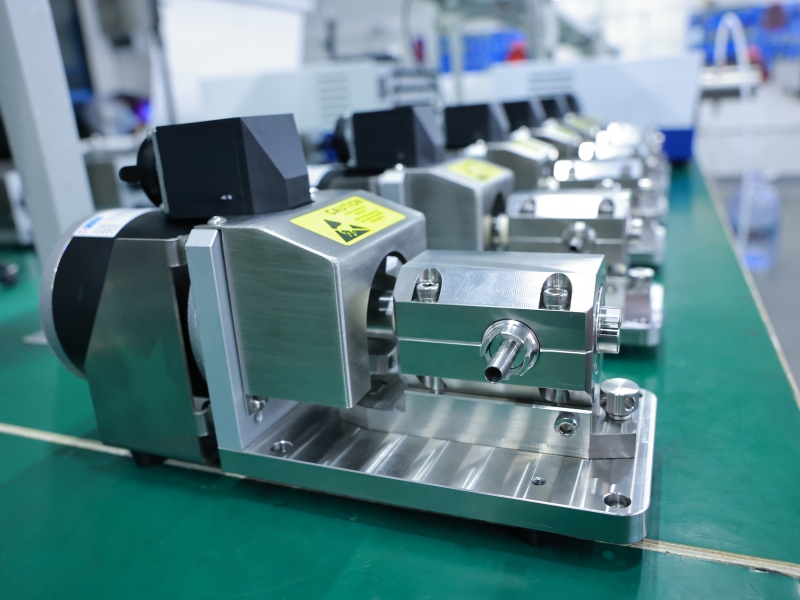

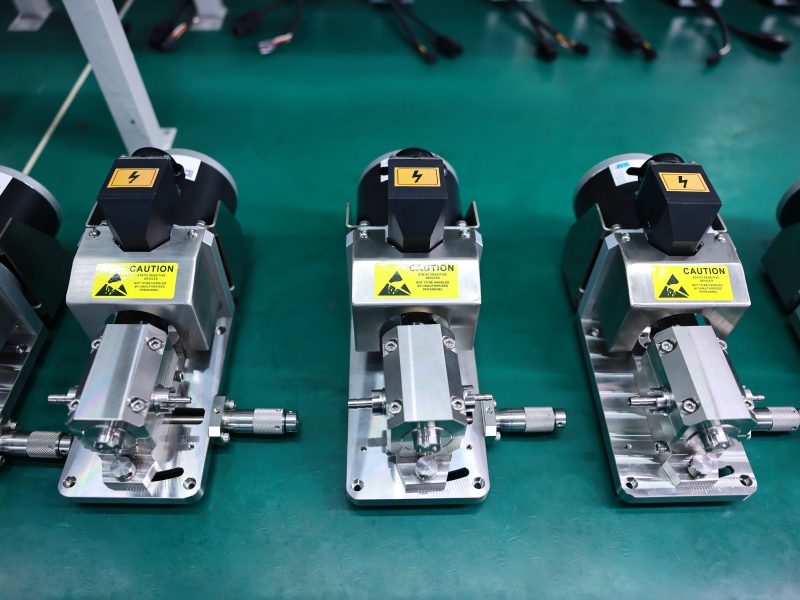

MICRAVA WORKSHOPS
From machining and assembly to testing and packaging, we focus on delivering reliable fluid dosing solutions for demanding industrial applications !

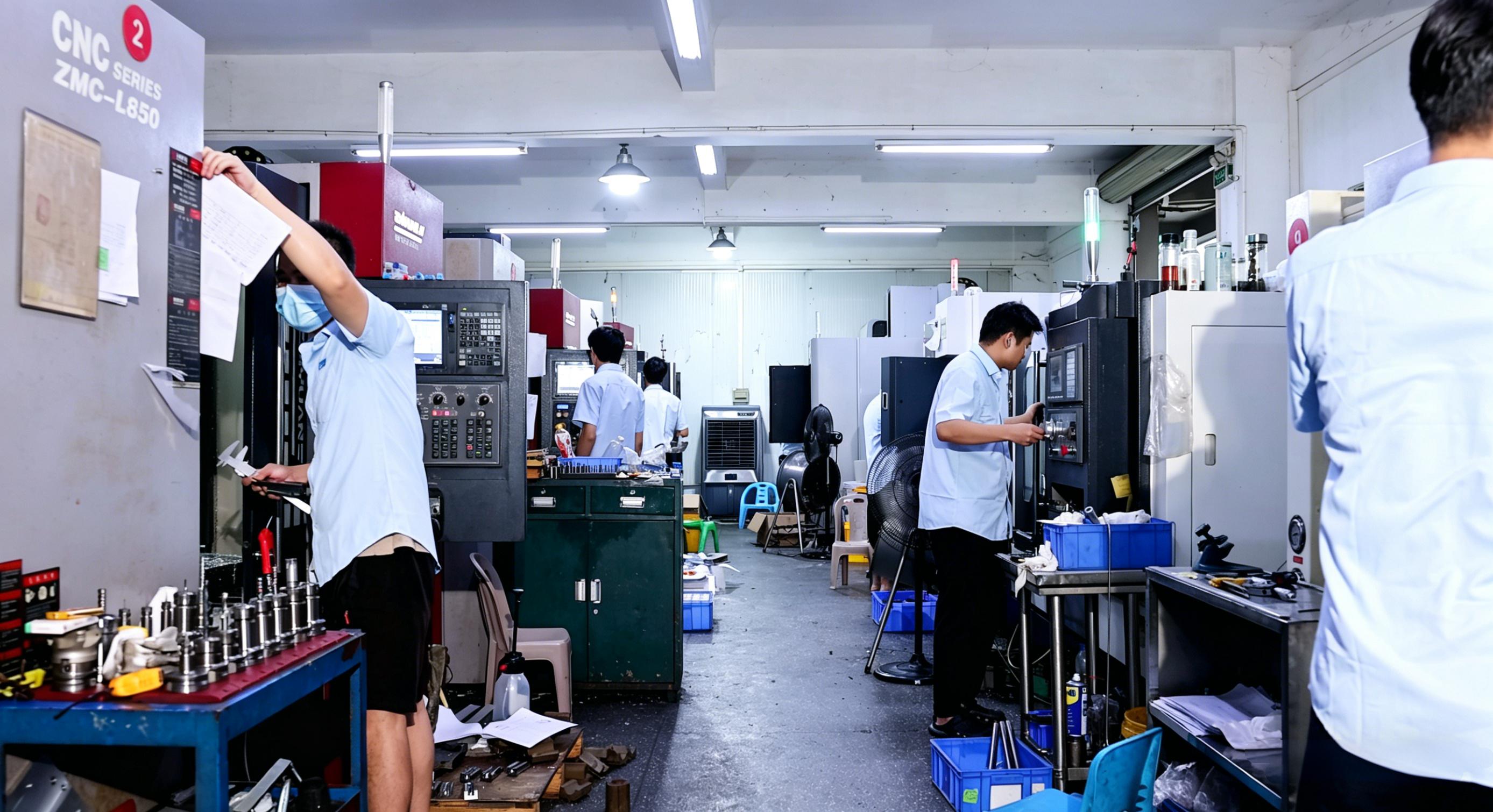

ADVANCED EQUIPMENT
Micrava utilizes advanced CNC machining equipment, precision testing instruments, and automated inspection systems to achieve tight tolerances and reliable pump performance. Our technology-driven production process helps ensure excellent accuracy, corrosion resistance, and long service life.
PRODUCT PACKAGING
Every product is carefully inspected and securely packed before shipment to minimize transportation risks. We use reinforced packaging methods and protective materials to ensure pumps arrive safely and in excellent condition for customers worldwide.
