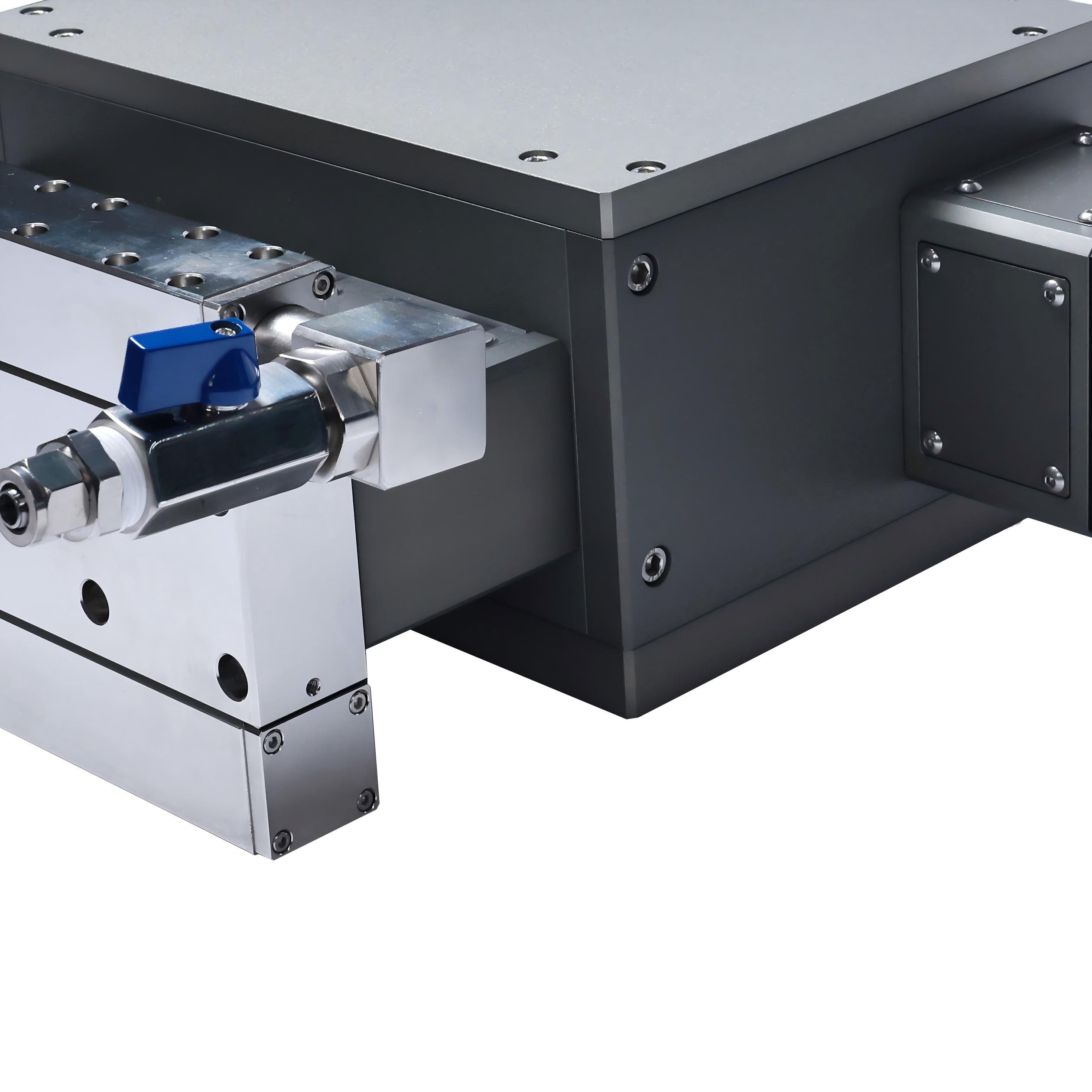

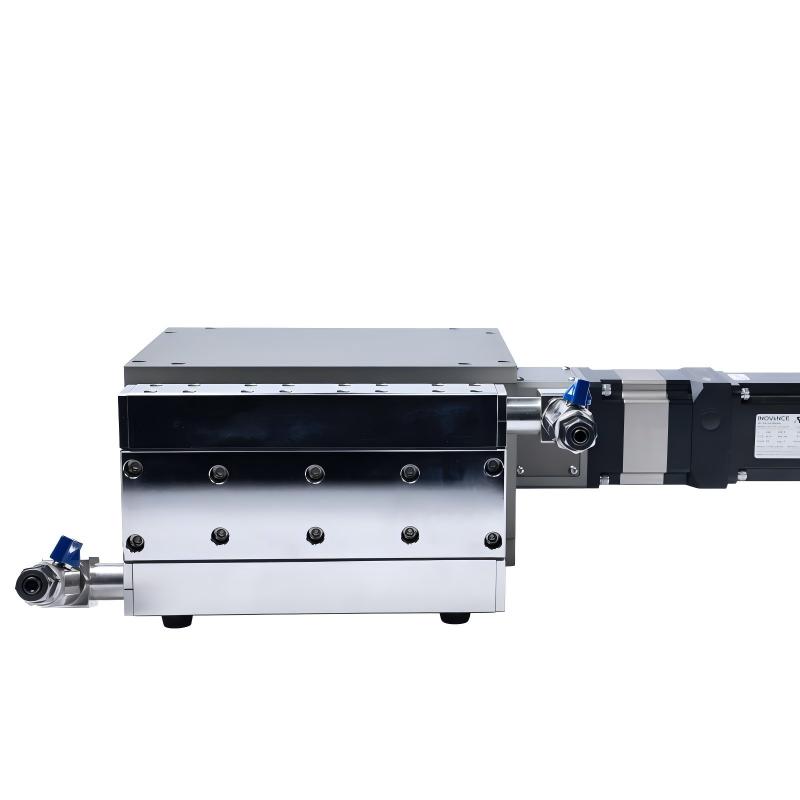

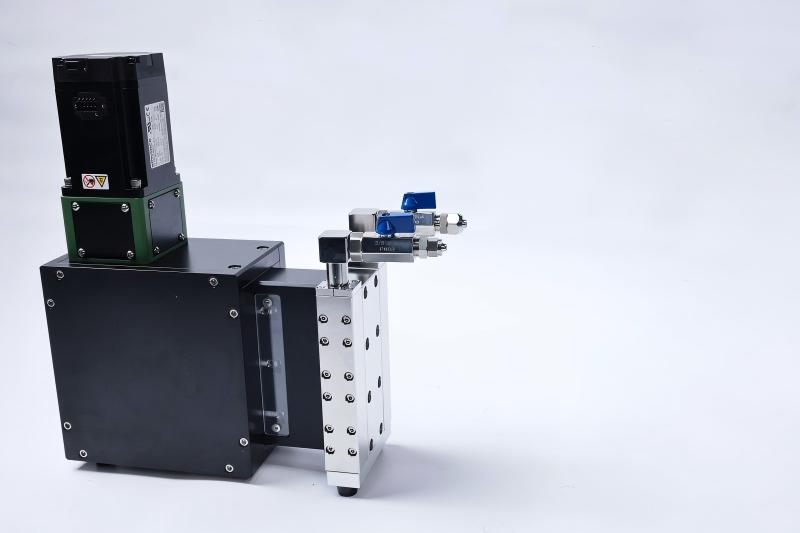

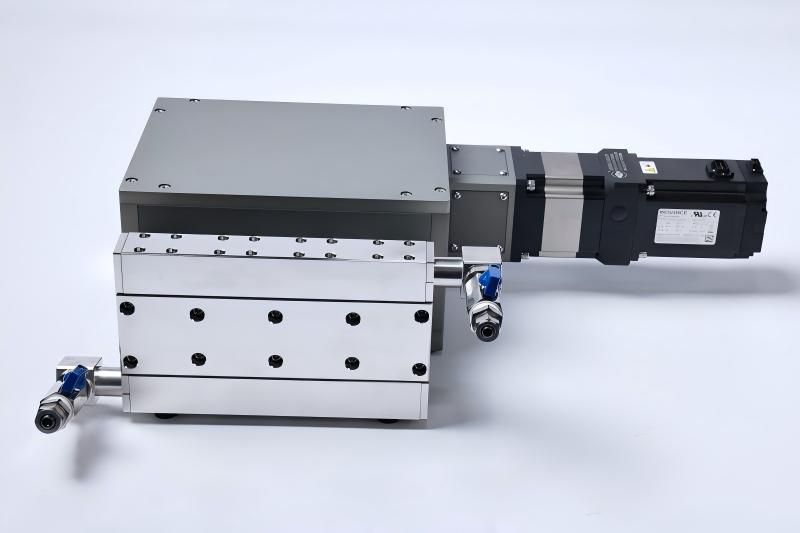

Constant Flow Pump

Constant Flow Pump

Specifications	M-CF-1L/MIN	M-CF-2.4L/MIN	M-CF-10L/MIN
Plunger Material	Alumina/Zirconia/Silicon Nitride /Sapphire(Optional)
Drive Type	Sevo motor
Adjustment Method	Digital Touchscreen Adjustment
Maximum Flow Rate	1L/min	2.4L/min	10L/min
Number of ceramic plungers	3	3	3
Flow Rate Accuracy	±0.2%	±0.2%	±0.5%
Inlet Pipeline	φ6×8mm	φ8×10mm	φ8×10mm
Outlet Pipeline	φ4×6mm	φ10×12mm	φ10×12mm
Communication interface	Rs232(485 optional), I/O, CC TRIG, AUX OUT
Power supply	220V/50HZA or 120V/60HZ(optional)

3

CONTROLLER

Smart Communication Function

1. Flexible operation with a user-friendly interface.

2. Standard RS485/RS232 interfaces with MODBUS protocol for communication with IPC or PC.

3. Customizable communication ports available for closed-loop control.

4. Supports OEM and ODM customization.

5. Capable of controlling multiple pumps (N pumps) simultaneously with independent parameter settings for each.

6. Enabling easy integration into automated system

7. Settable parameters: Filling Speed, Filling Cycle, Filling Volume, Filling Time

Ceramic constant flow pumps are widely used for large-capacity battery electrolyte filling and high-precision corrosive liquid dosing applications such as sulfuric acid injection. Designed for stable continuous flow and accurate liquid control, the pump can handle corrosive chemicals with excellent reliability and consistency. Its wear-resistant ceramic structure ensures long service life, making it ideal for industrial processes that require both high flow stability and precise dosing accuracy.

A 2.4L/min constant flow pump is commonly used in applications that require stable, continuous, and reliable fluid transfer. Typical applications include:

1. Reagent circulation

2. Cleaning solution transfer

3. Buffer solution supply

4. Continuous fluid supply for automated analyzers

NEW ENERGY INDUSTRY

IVD&LAB

FOOD&BEVERAGE

COSMETICS

FINE CHEMICAL

PHARMA&BIOPHARMA

WATER TREATMENT

Challenges in Chemical Dosing

1.Corrosive liquids damage traditional pumps

2.Inaccurate dosing affects production quality

3.Frequent maintenance increases downtime

4.Flow instability leads to process variation

Our Ceramic Pump Solution

1.Ceramic materials resist acids, alkalis and solvent

2.High precision dosing improves product consistency

3.Stable operation reduces maintenance frequency

4.Low pulsation ensures smooth fluid delivery

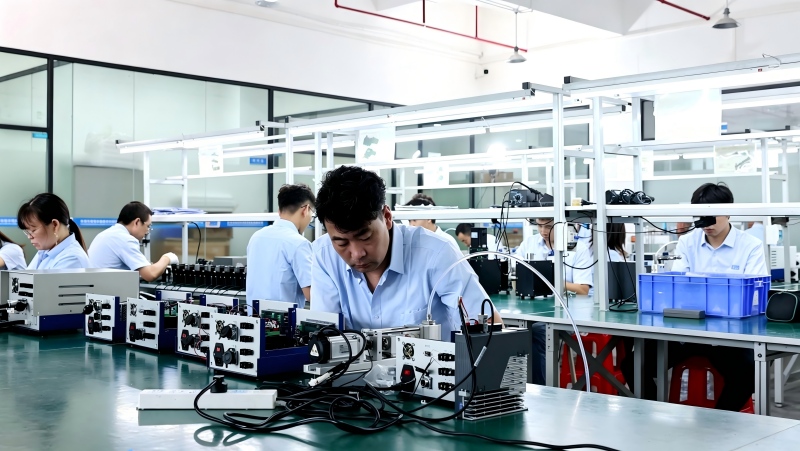

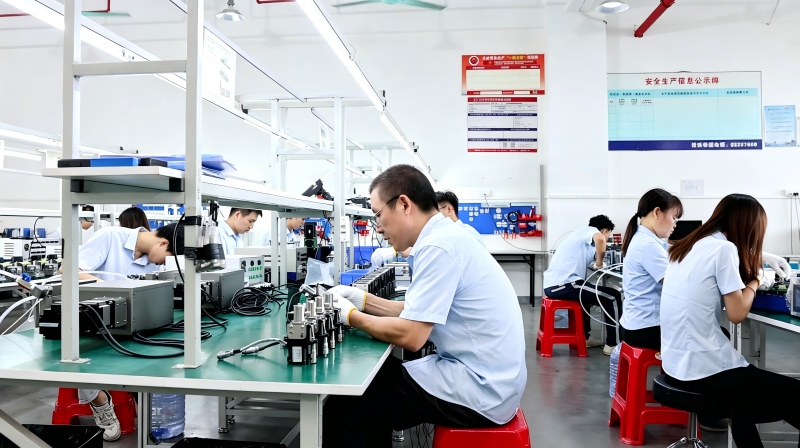

From precision machining and assembly to performance testing and final packaging, we are committed to providing dependable fluid dispensing solutions for challenging industrial applications.

Micrava is equipped with advanced CNC manufacturing equipment, high-precision testing devices, and automated inspection systems to maintain strict quality standards and stable pump performance. Our technology-focused production process ensures high accuracy, strong corrosion resistance, and extended operational lifespan.

Each product undergoes thorough quality inspection and protective packaging before delivery. To reduce the risk of damage during transportation, we use durable packing materials and reinforced packaging solutions, ensuring every pump reaches customers worldwide safely and in optimal condition.
