Intelligent Ceramic Plunger Pump
OVERVIEW
Micrava intelligent ceramic plunger pump is used for high precision fluid dosing.
It is used in lithium battery electrolyte filling, vapor chamber and heat pipe manufacturing, AF coating processes, and biomedical liquid dispensing.
With a ceramic precision structure and intelligent control system, the M-SHI-G500µl ensures stable performance even under high-speed and continuous production environments.

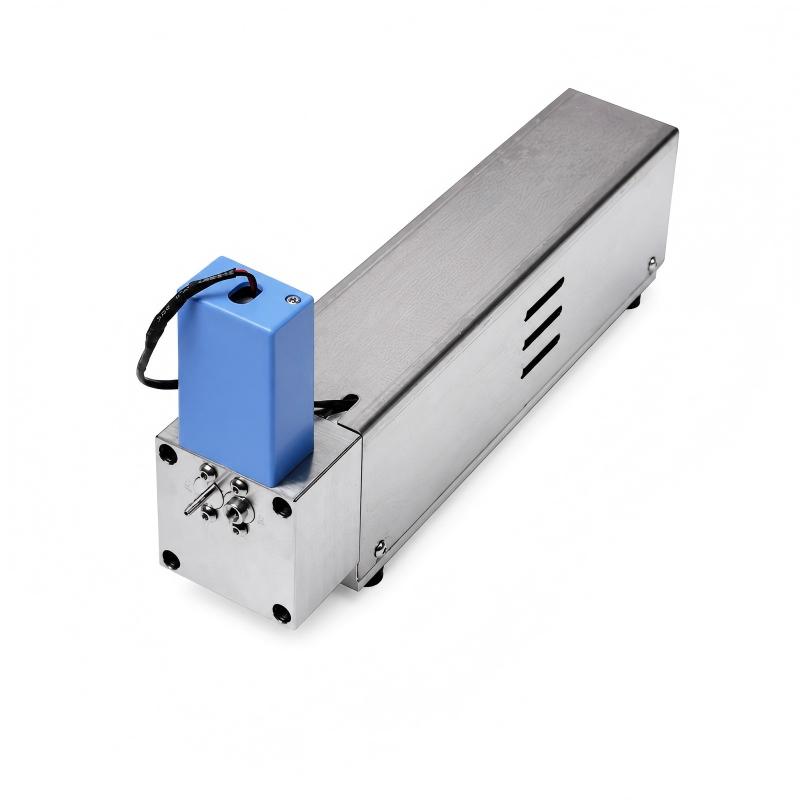

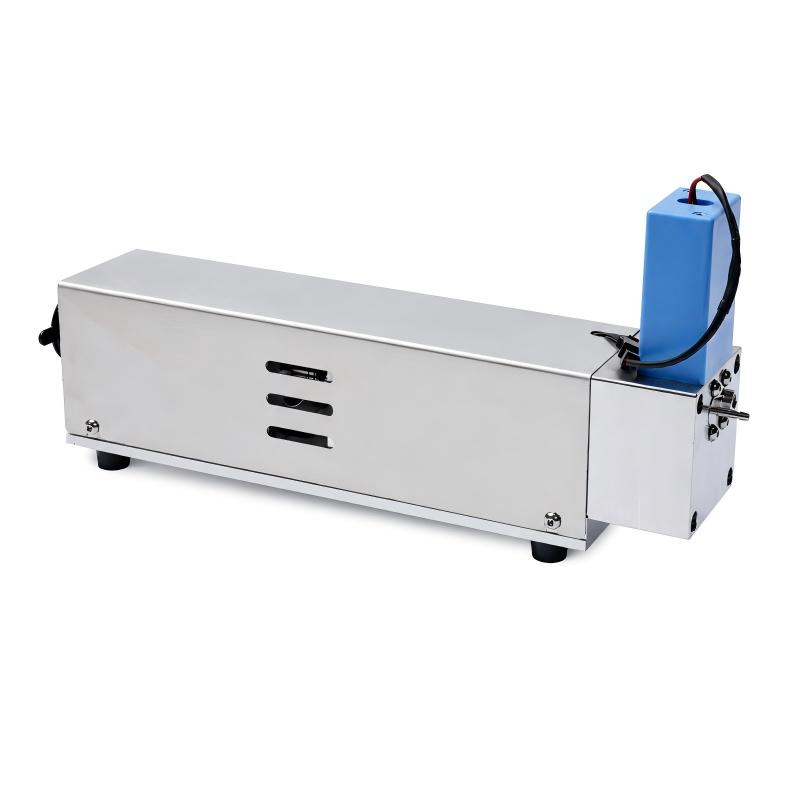

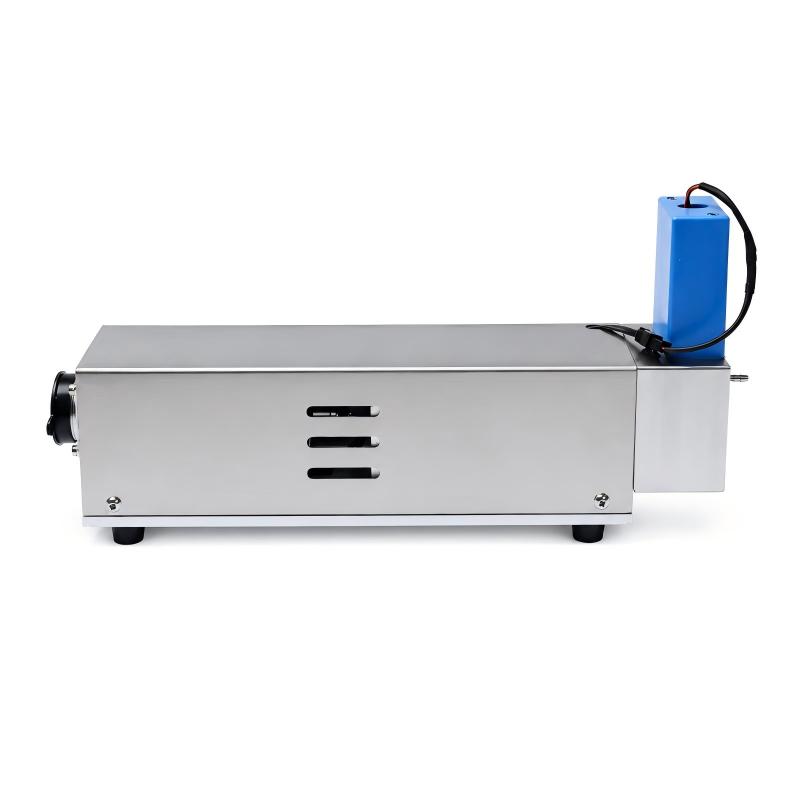

DETAILES PICTURE
PRODUCT PARAMETER
| Specification & Model | M-SHI-G500µl | M-SHI-G1500µl | M-SHI-G3500µl | M-SHI-G5000µl | M-SHI-10ml |
| Plunger Material | Alumina /Zirconia / Silicon Nitride / Sapphire (Optional) | ||||
| Valve Direction Switching | SMC Precision Electric Valve | ||||
| Driving Mode | Precision Screw Motor | ||||
| Stroke Speed | 1-200r / Min (Preparation And Selection) | ||||
| Adjustment Mode | Digital Screen Touch Screen Smart Adjustment | ||||
| Single Stroke Range | 5-500µL | 5-1500µL | 5-3500µL | 10-5000µL | 50-10000µL |
| Stroke Accuracy | ±0.1% | ±0.1% | ±0.1% | ±0.3% | ±0.5% |
| Liquid Inlet Pipe | Φ2.5×4mm | Φ2.5×4mm | Φ4×6mm | Φ6×8mm | Φ6×8mm |
| Outlet Pipe | Φ1.0×1.6mm | Φ1.0×1.6mm | Φ2.5×4mm | Φ4×6mm | Φ4×6mm |
APPLICATIONS
Ceramic plunger pumps are widely used in the fields of precise liquid injection and measurement with high accuracy, high repeatability and long service life. Due to their excellent corrosion resistance and wear resistance, ceramic pumps are particularly suitable for applications such as water-based liquids, electrolyte injection, chemical liquid addition, laboratory liquid separation, and integration of automated production lines. According to the production requirements, MICRAVA can provide single-head and multi-head plunger pumps to meet the needs of experiments and production.
TECHNOLOGY ADVANTAGE
Alumina/Zirconia ceramic plunger for excellent wear resistance and long service life
Excellent chemical resistance for corrosive liquids such as alkalis and acids
Non contamination fluid path design, suitable for high purity applications
High repeatability ensures stable production quality over long-term operation
Low maintenance structure reduces downtime and operating cost
Designed for continuous industrial production environments
Supports CIP (Clean-In-Place) cleaning

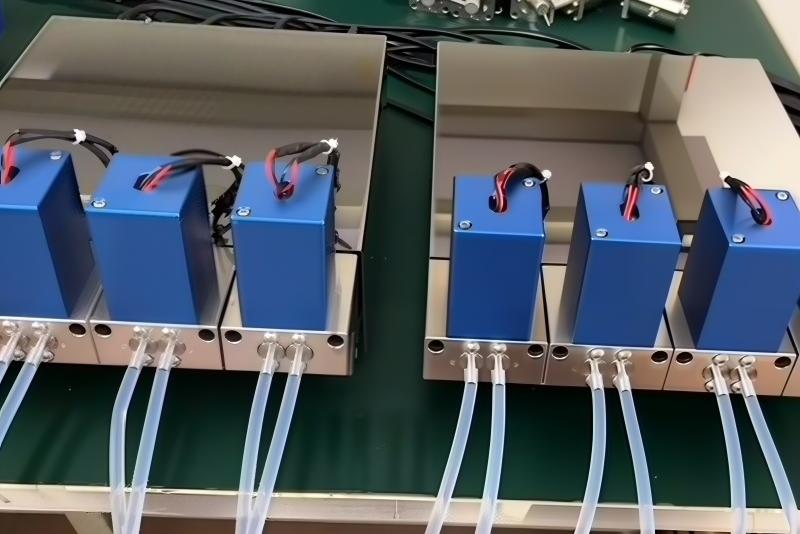

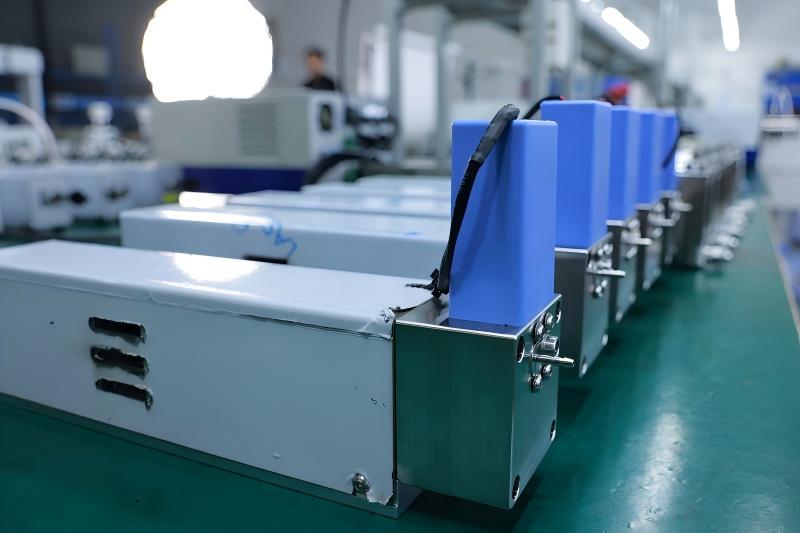

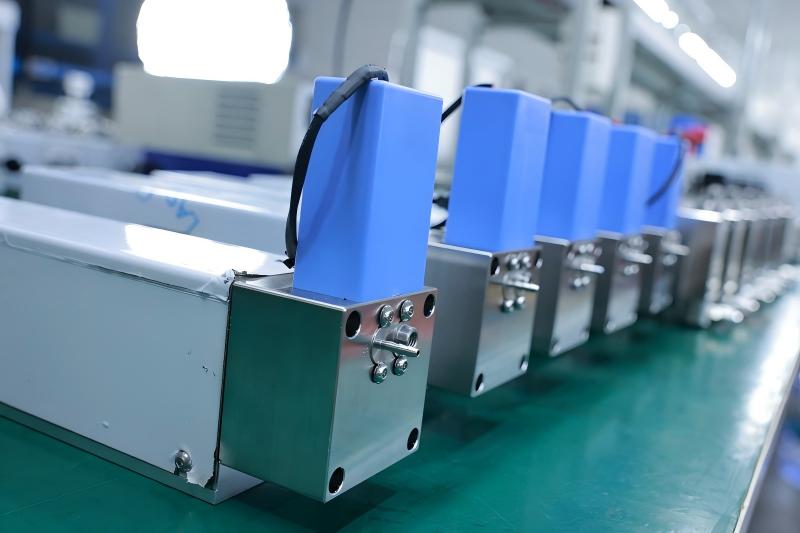

WORKSHOP SHOW
The production workshop of MICRAVA operates strictly in accordance with the ISO quality management system standards, dedicated to manufacturing ceramic plunger pump products with high consistency and precision. From raw material processing, precise manufacturing, product assembly to performance testing and final inspection, each production process follows a strict quality control procedure.
Professional quality inspection personnel are assigned to each production stage for testing, ensuring that the products meet the high standards in terms of dimensional accuracy, sealing performance, injection precision, and operational stability. During the production process, advanced CNC precision processing equipment, ceramic plunger processing equipment, and high-precision detection instruments are employed to guarantee the long-term stability and consistency of the products.
Through a comprehensive and meticulous quality inspection system throughout the entire process, we are able to provide customers with ceramic piston pump products that possess high precision, wear resistance, stable performance, and long service life.
PACKAGING AND TRANSPORTATION
We ensure safe and efficient global delivery through reliable logistics channels.
Worldwide shipping available via air freight, sea freight, and express delivery
Standard export documentation provided (invoice, packing list, etc.)
Equipment is securely fixed inside crates to prevent movement during transit
Tracking information is provided for every shipment
Flexible delivery options based on project timeline and urgency
