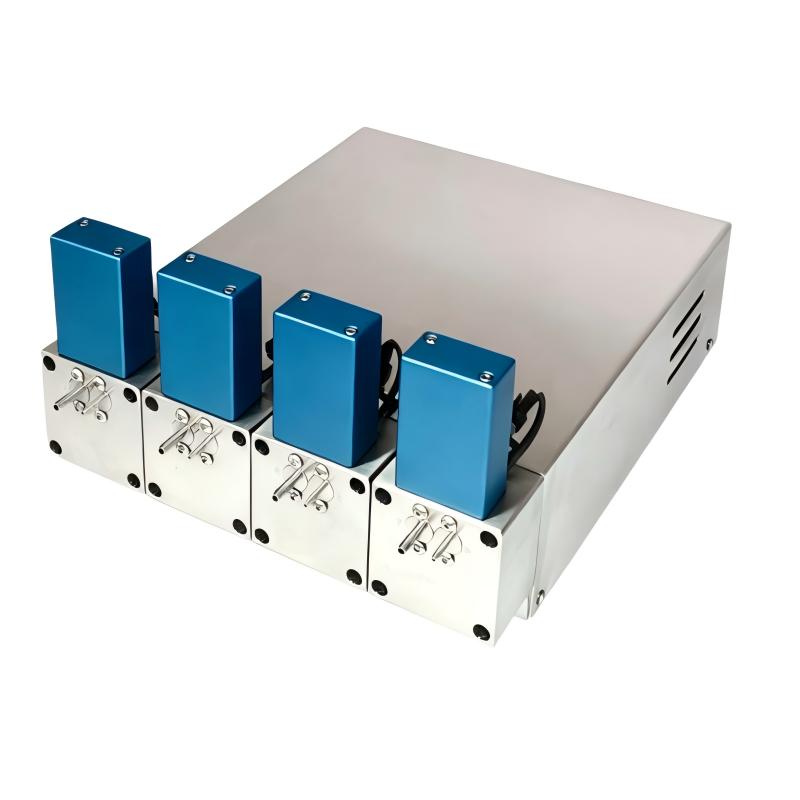

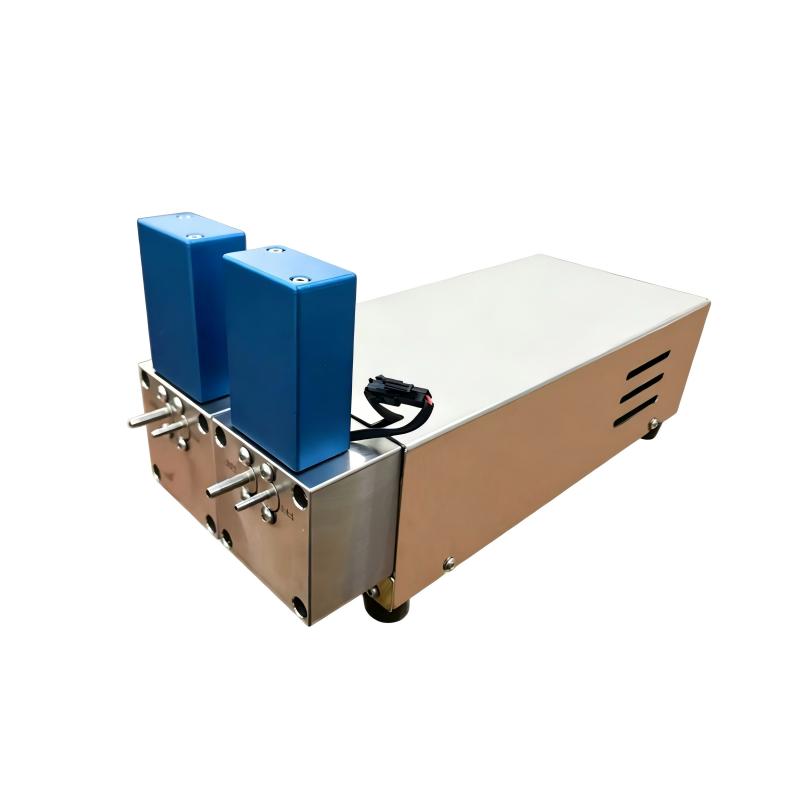

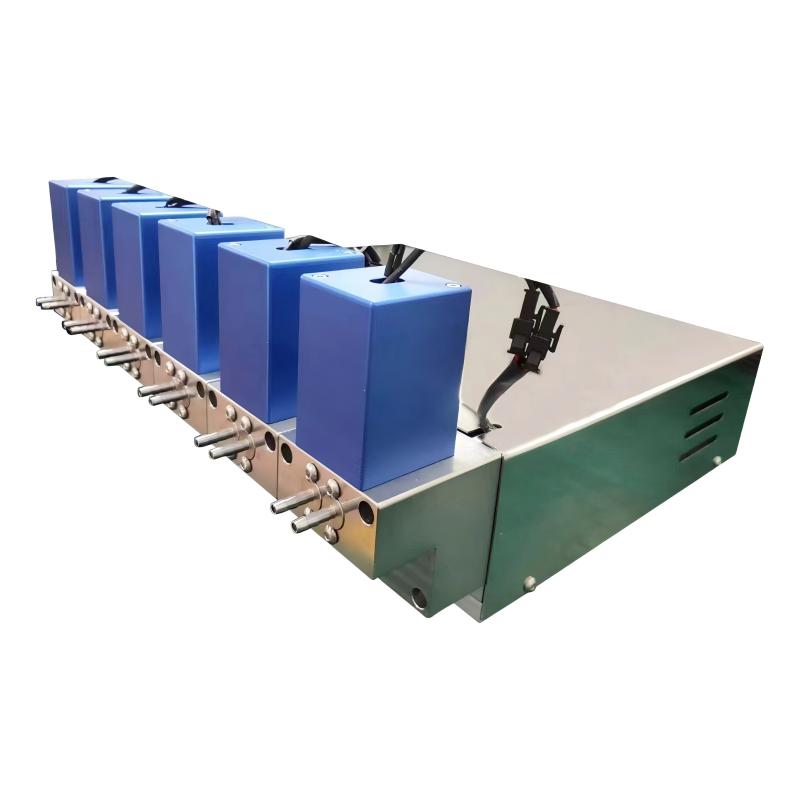

Multi-Head Micro Ceramic Pump System
Product Overview
The High-Precision Multi-Head Micro Ceramic Pump System is designed for high precise liquid dispensing, dosing, and filling applications. Equipped with multiple ceramic pump heads and one controller, the system enables simultaneous dispensing operations while maintaining less then 0.5% accuracy and repeatability.
Product Advantages
1. Multi Head High Efficiency Design
Multiple pump heads can operate simultaneously, significantly increasing production efficiency and throughput.
2. High Precision Dispensing
Provides highly accurate micro volume dosing with excellent repeatability and consistency.
3. Ceramic Wear-Resistant Structure
Key wetted components are manufactured from advanced ceramic materials, ensuring long service life and minimal wear.
4. Corrosion Resistance
Compatible with acids, alkalis, solvents, electrolytes, pharmaceutical liquids, and various chemical solutions.
5. Maintenance-Free Operation
No wearing seals or dynamic contact components, resulting in low maintenance requirements and reduced operating costs.
6. Compact and Space Saving
Small footprint design allows easy installation into laboratory instruments and automated production systems.
7. Easy Cleaning and Maintenance
Quick disassembly design supports online cleaning and rapid maintenance procedures.

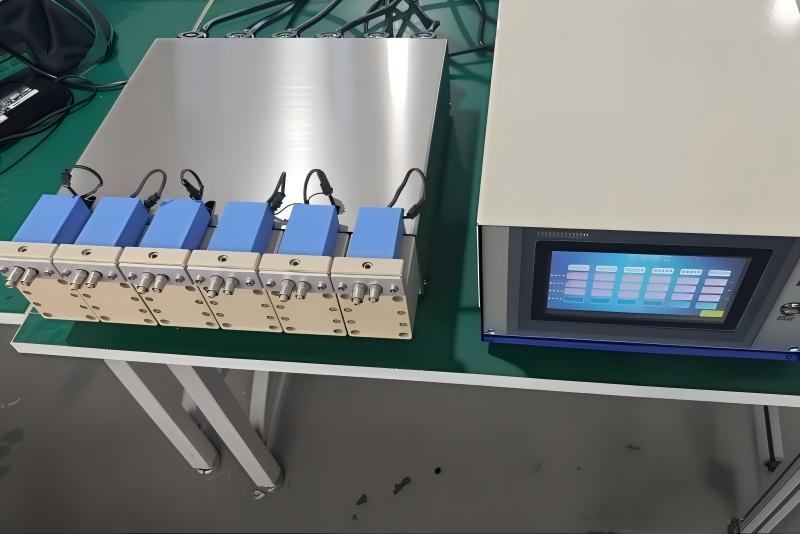

8. Intelligent Touchscreen Control
Digital touchscreen interface allows easy adjustment of dispensing volume, speed, and operating parameters.
9. Diaphragm Valve Structure
Installed close to the dispensing outlet, the diaphragm valve minimizes dripping, stringing, and residual liquid effects, helping achieve higher dispensing accuracy and cleaner dispensing results.
Applications
Suitable for:
1. Battery Electrolyte Filling
2. Pharmaceutical Liquid Dispensing
3. Laboratory Automation
4. Diagnostic Reagent Dispensing
5. Chemical Dosing Systems
6. Biotechnology Equipment
7. Semiconductor Chemical Delivery
8. Precision Fluid Control Systems
Technical Specifications
| Specification & Model | M-6HI-G500µl | M-6HI-G1500µl | M-6HI-G3500µl | M-6HI-G5000µl |
| Plunger Material | Alumina / Zirconia / Silicon Nitride / Sapphire (Optional) | |||
| Number Of Ceramic Pump Heads | 6 Ceramic Pump Heads With Independent Control | |||
| Valve Direction Switching | SMC Precision Solenoid Valve | |||
| Driving Mode | Single Axis Independent Stepper Motor | |||
| Adjustment Mode | Digital Screen Touch Screen Smart Adjustment | |||
| Single Stroke Range | 3-500µL | 5-1500µL | 20-3500µL | 50-5000µL |
| Stroke Accuracy | ±0.1% | ±0.1% | ±0.3% | ±0.3% |
| Liquid Inlet Pipe | Φ2.5×4mm | Φ4×6mm | Φ6×8mm | Φ6×8mm |
| Outlet Pipe | Φ1.0×1.6mm | Φ2.5×4mm | Φ4×6mm | Φ4×6mm |
Product Drawing Section

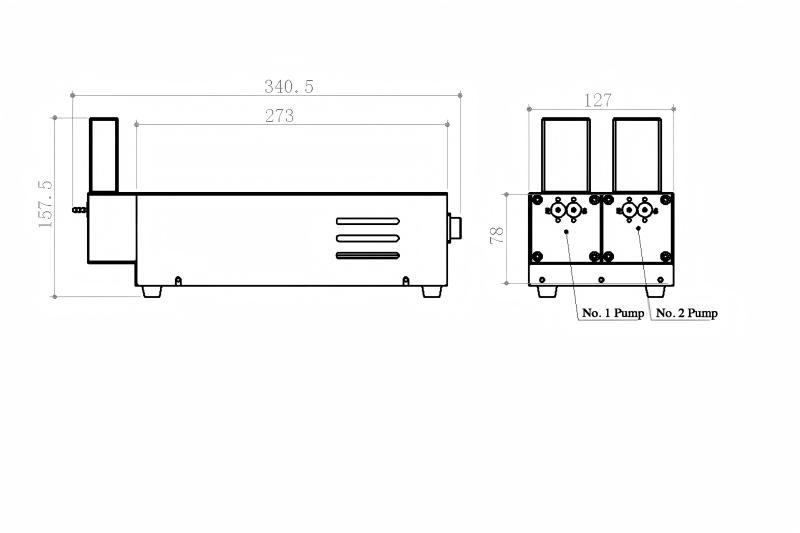

2 Heads Pump Drawing

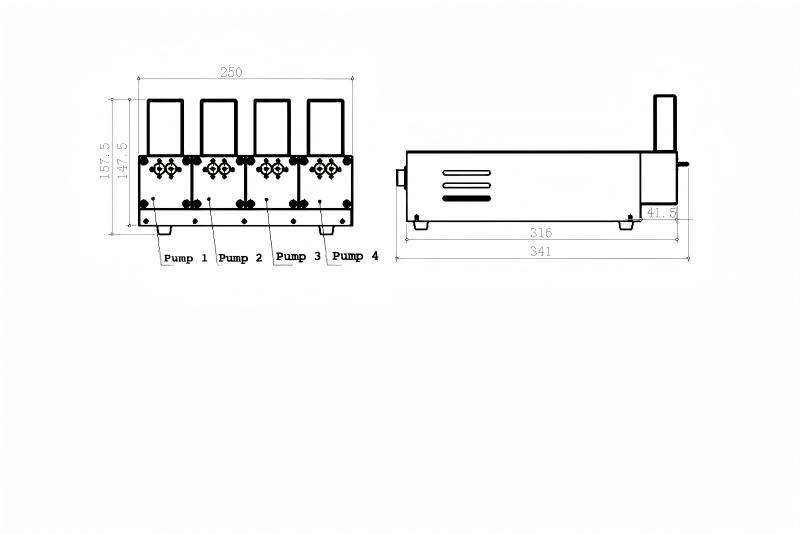

4 Heads Pump Drawing

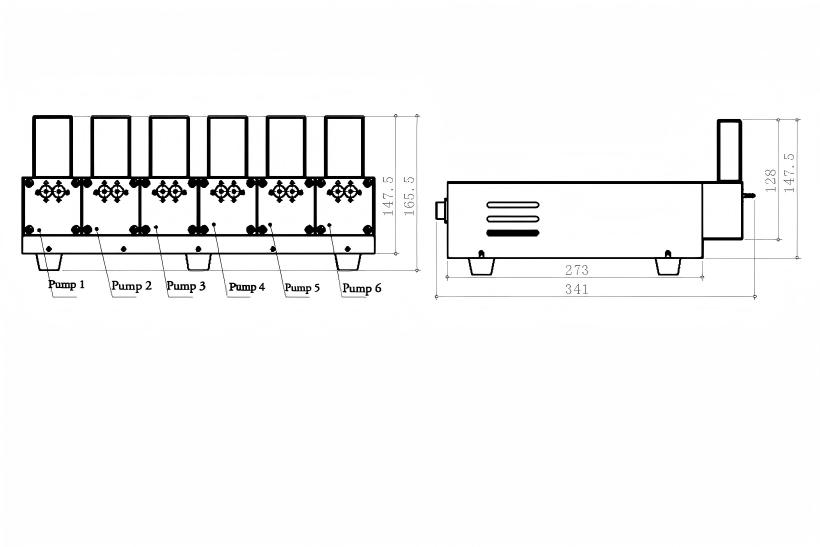

6 Heads Pump Drawing
